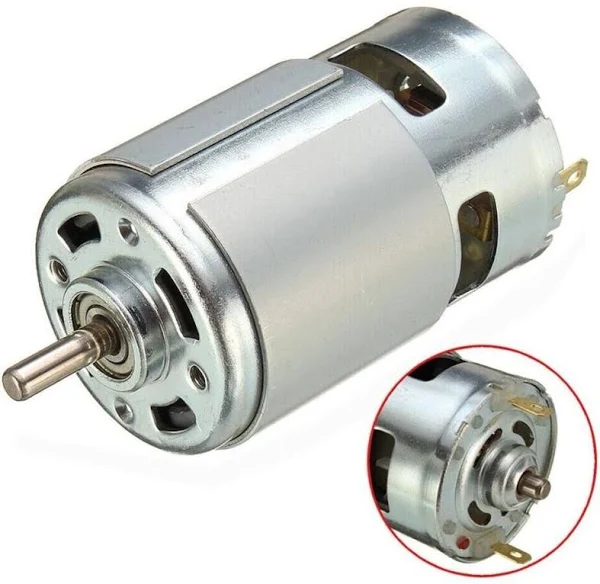

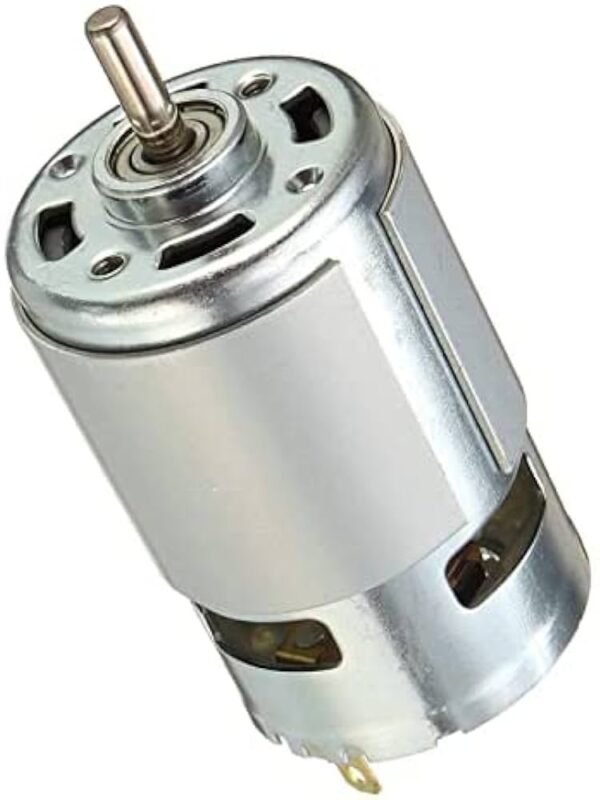

RS-775 DC Motor 12V – Bearing Type [TYPE – 1]
₹250.00 Original price was: ₹250.00.₹169.00Current price is: ₹169.00.
Exclusive GST, Shipping calculated at checkout.
SKU:
ES1494
Categories: All Products, DC Motor - General, Robotics and Motor
Description
- Operating Voltage: 12V
- No-load Current: 0.6A
- Maximum Current: 2A
- No Load Speed RPM @12V: Approx ~5000/6000 RPM
- No Load Speed RPM @24V: Approx ~11000/12000 RPM

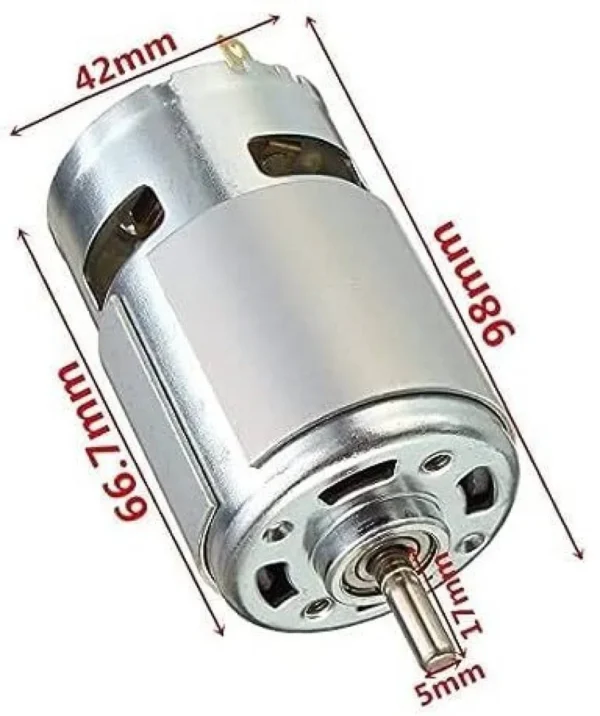

- Mounting Screw Hole Diameter: ~4 mm
- Distance between Screw Holes: ~33 mm
- Diameter of the Motor: 41mm(Without metal clip)
- Length of the Motor (Body): 67mm
- Length of shaft: ~16-20 mm(Veries with Every Lot but usually lies in this bracket)
- Motor Shaft Diameter: 5mm
- Main Color: Silver Tone
Note – The shaft of the motor can be either Half Cut (D shape) or it can be completely Round and we send it randomly according to its availability in our warehouse.
Additional information
Weight | 0.285 kg |
---|---|
Dimensions | 10 × 4.3 × 4.3 cm |
