Vibration Sensor SW-420 Module

SKU: ES1022

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹55.00.Current price is: ₹38.00.

(Exclusive GST) Shipping calculated at checkout

11 People watching this product now!

Payment Methods:

Description

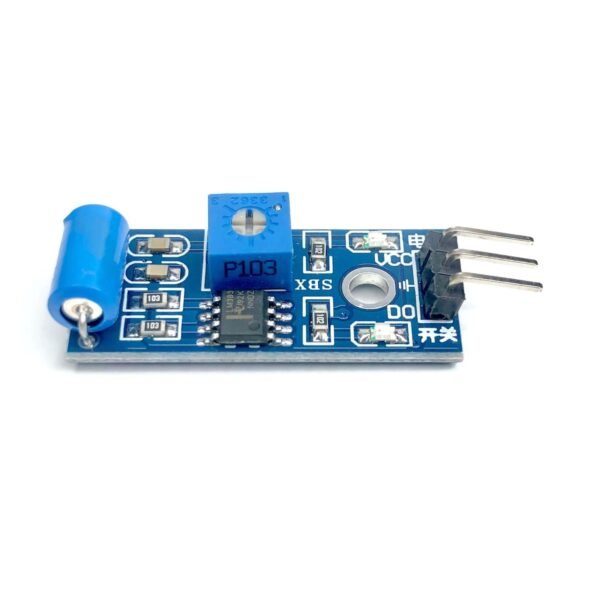

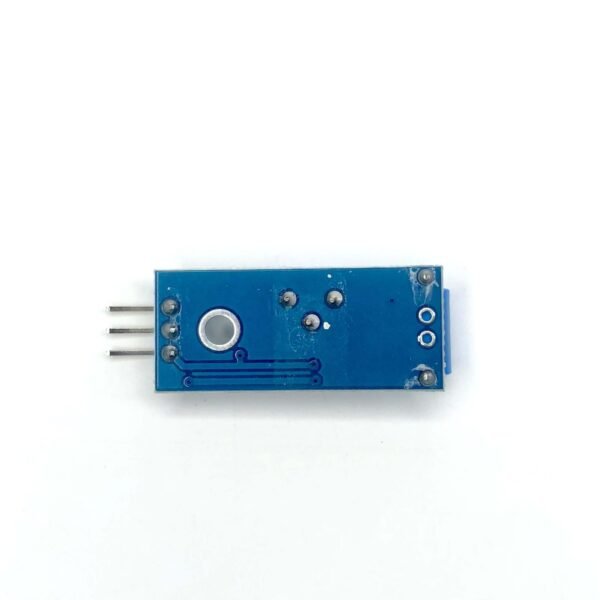

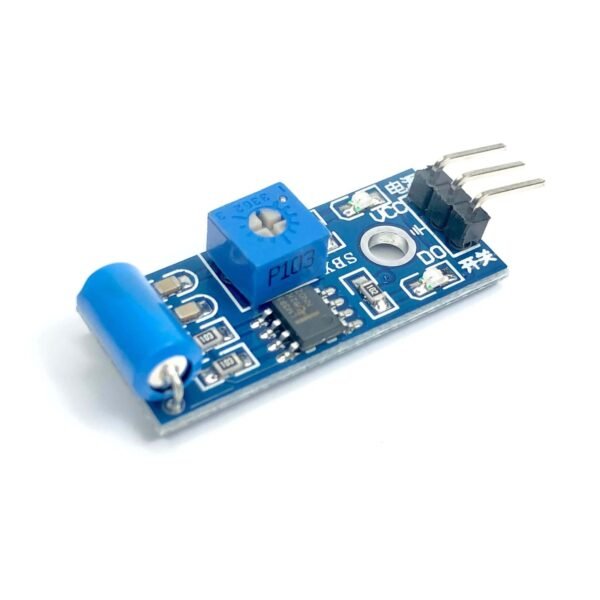

Vibration Sensor SW-420

SW-420 NC Type Vibration Sensor Module Vibration Switch for Arduino Smart Car. When the module is not vibrating, the vibration switch has been set to low output state output, the green indicator light is closed. The product vibrates, vibration switches momentary disconnect, output high drove, the green light does not light up. The output can be connected directly to the microcontroller, which detects the high and low levels, so as to detect whether the environment emitted the vibration.

Features:

  • Use SW-420 normally closed vibration sensor
  • comparator output, clean signal, good waveform, strong driving ability,> 15mA
  • Operating voltage 3.3V ~ 5V
  • Output format: Digital switching output (0 and 1)
  • With a wide voltage LM393 comparator
  • With screw holes for easy installation
