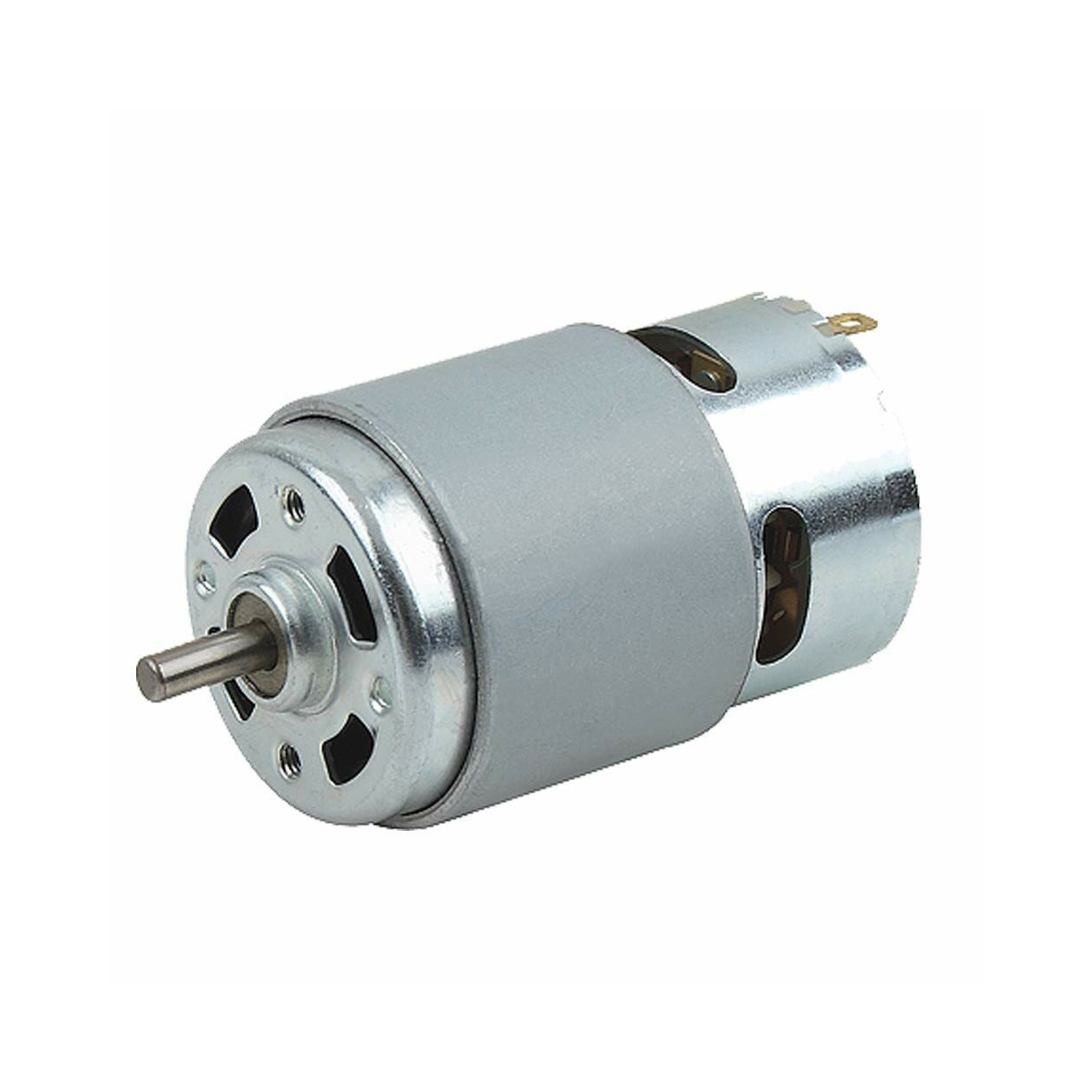

RS-775 DC Motor 12V – Bush Type [TYPE-2]

Description

• Operating Voltage: 12V
• No-load Current: 0.6A
• Maximum Current: 2A
• No Load Speed RPM @12V: Approx ~4000/5000 RPM
• No Load Speed RPM @24V: Approx ~10000/11000 RPM
• Mounting Screw Hole Diameter: ~4 mm
• Distance between Screw Holes: ~33 mm

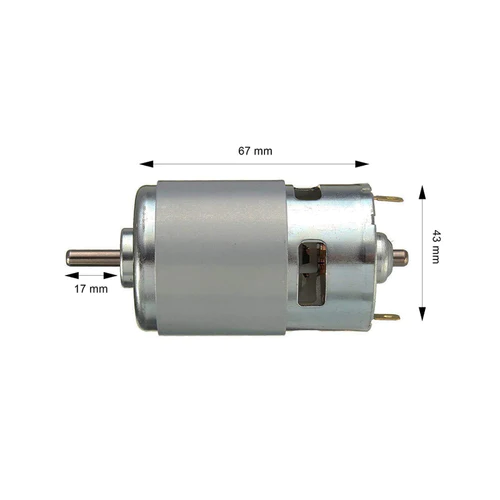

• Diameter of the Motor: 41mm(Without metal clip)
• Length of the Motor (Body): 67mm
• Length of shaft: ~16-20 mm(Veries with Every Lot but usually lies in this bracket)
• Motor Shaft Diameter: 5mm
• Main Color: Silver Tone
