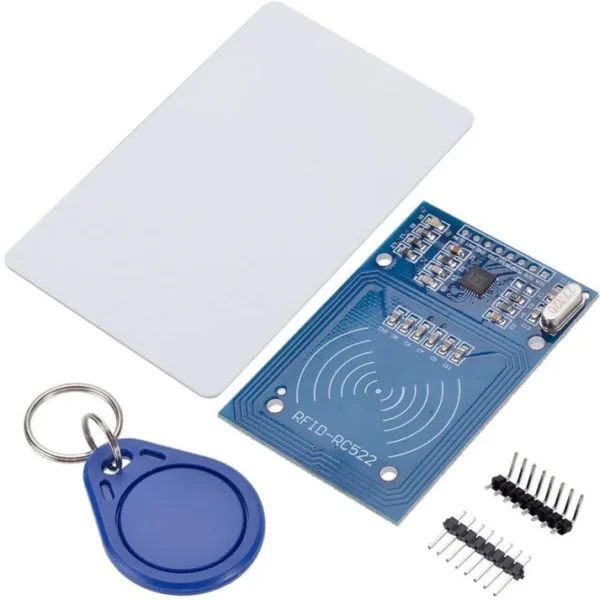

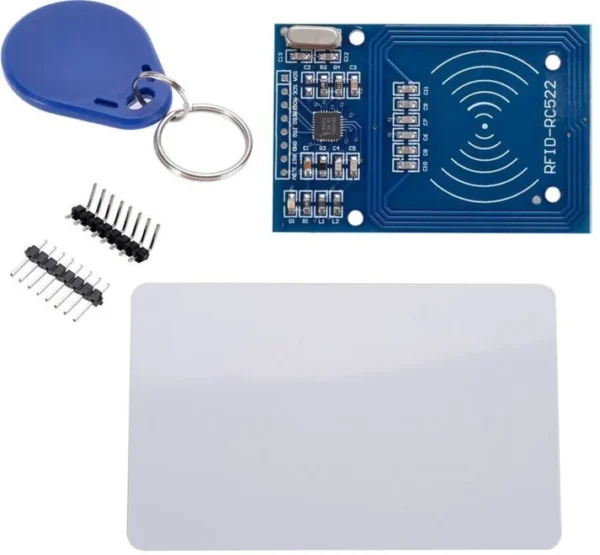

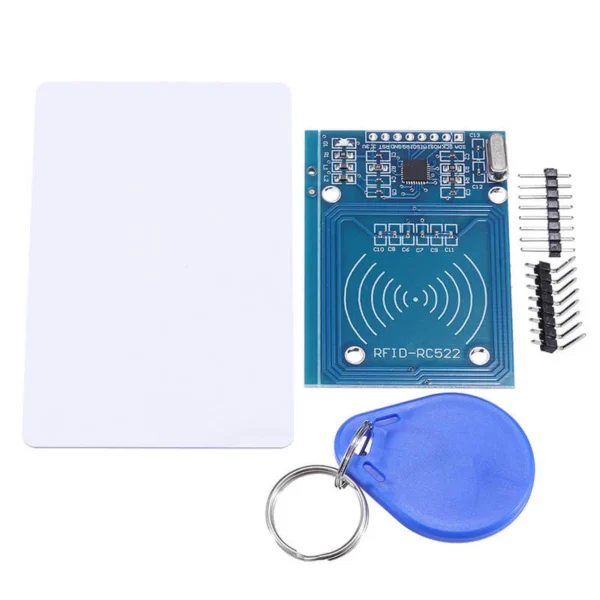

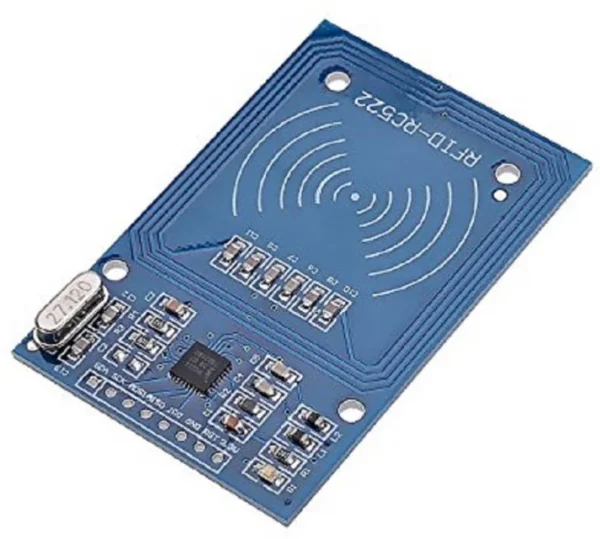

RFID Reader/Writer with RFID Card and Tag RC522

This RC522 RFID Card Reader Module 13.56MHz is a low-cost MFRC522-based RFID Reader Module is easy to use and can be used in a wide range of applications. RC522 is the highly integrated RFID card reader which works on non-contact 13.56mhz communication, is designed by NXP as low power consumption, low cost and compact size read and write chip, is the best choice in the development of smart meters and portable hand-held devices.

RFID Cards are frequently used as personal identifiers in personnel management or access control systems. This is a version of the popular ISO format identity card. The RFID technology is used for sensing and identifying tagged people and objects for access control, automation, and a whole range of different applications.

Features :

1. Highly integrated analog circuitry to demodulate and decode responses.
2. Supports ISO/IEC 14443 A/MIFARE.
3. Typical operating distance in reading/Write mode up to 50 mm.
4. Supports ISO/IEC 14443 A higher transfer speed communication up to 848 kBd.
5. SPI up to 10 Mbit/s.
6. FIFO buffer handles 64 bytes send and receive.
7. Flexible interrupt modes.
8. Power-down by software mode.
9. Programmable Timer.
10. 2.5 V to 3.3 V power supply.
11. CRC coprocessor.
12. Internal self-test.
