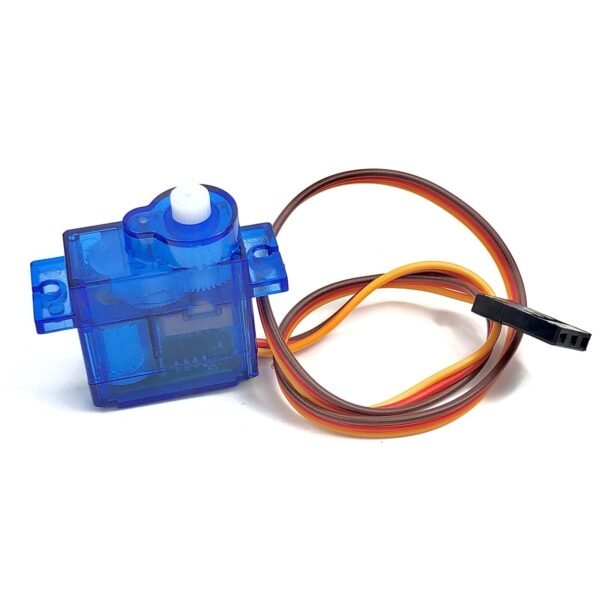

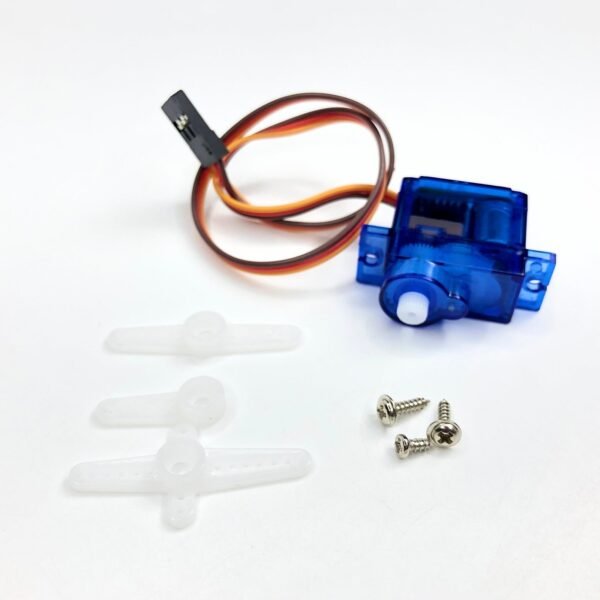

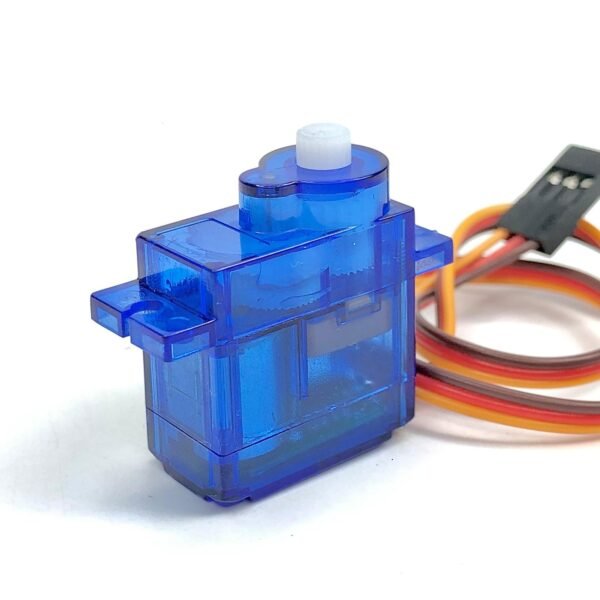

SG90 Servo Motor 9g Servo Motor 180 Degrees

SG90 Servo Motor 9g Servo Motor 180 Degrees

The SG90 9g Mini Servo is a 180° rotation servo. It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

WIRE DESCRIPTION

RED      : Positive

Brown  : Negative

Orange : Signal

Specifications:

• Model                        : SG90
• Weight                      : 9gm
• Operating Volt        : DC 3 – 7.2v
• Speed                        : 0.10 sec/60°
• Operating Temp.    : -30 – 60°C
• Gear Type                : Glass Fiber
• Rotation Degree     : 180
• Servo Plug               : JR
