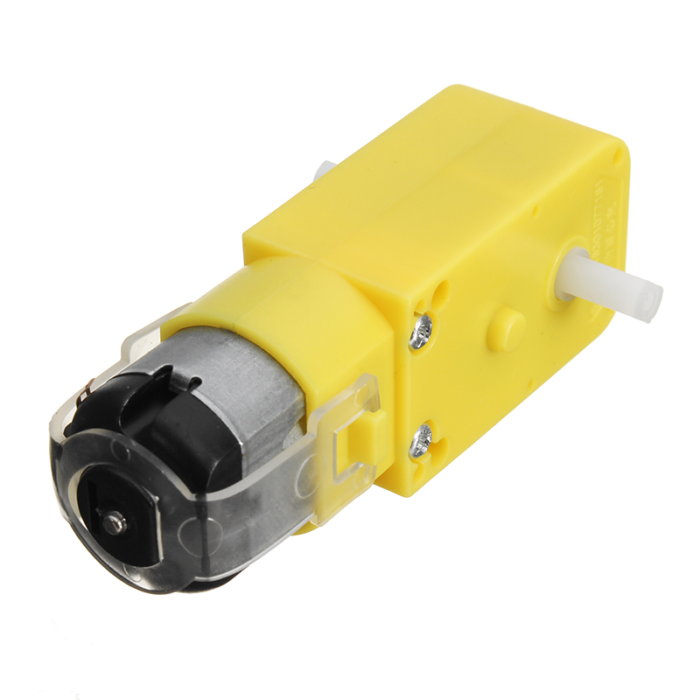

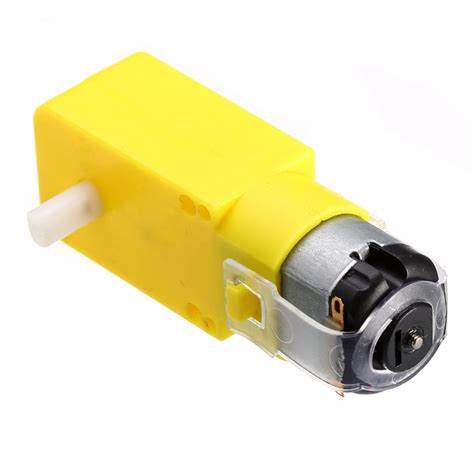

Single Side Shaft BO Motor

Description

The Single Shaft BO Motor – Straight motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors.

A small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & lightweight makes it suitable for in-circuit placement. This motor can be used with a 69mm Diameter Wheel for Plastic Gear Motors.

It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots.

The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD platforms.

Specifications of 150 RPM Single Shaft BO Motor – Straight:-

• Shaft length: 7 mm
• Shaft Diameter: 5.5 mm
• Size: 55 x 48 x 23 mm.
• Operating Voltage: 3 to 12V.
• Current (without loading): 40-180mA.
• RPM: vary.
• Output Torque: 0.8 kg-cm.
• Color: Multiple
