9W 220V/AC Alpha White 40mm DOB LED

SKU: ES1127

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹25.00.Current price is: ₹16.00.

(Exclusive GST) Shipping calculated at checkout

18 People watching this product now!

Payment Methods:

Description

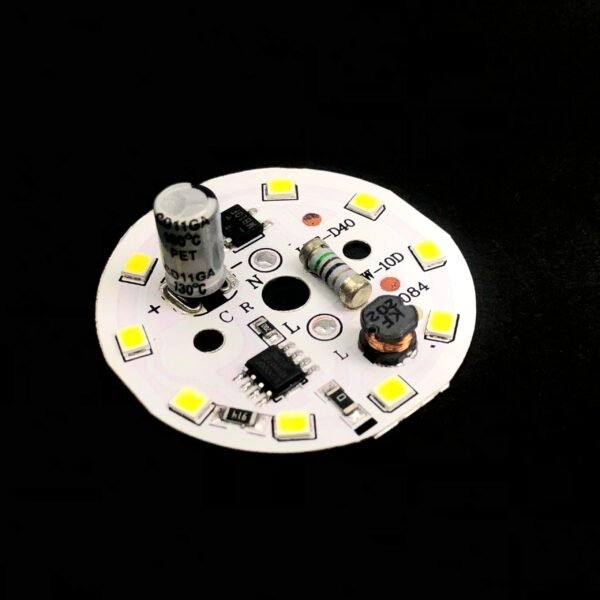

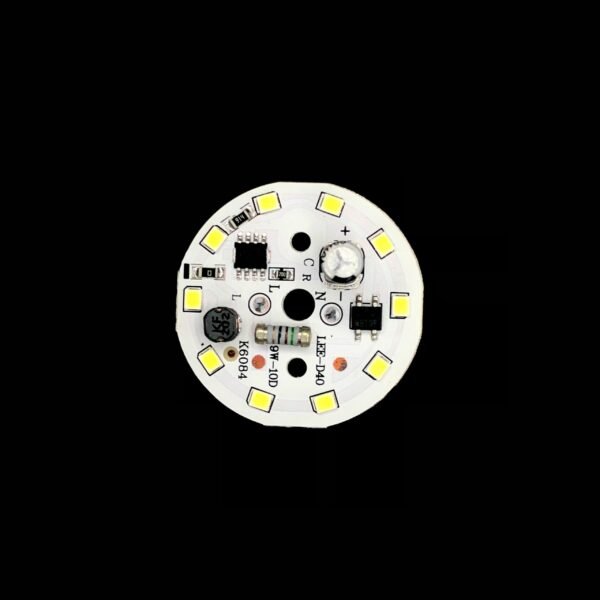

This is a 220V Alpha DOB LED PCB; this PCB has two main IC, which are used to drive the full LEDs and one another IC, known as a bridge rectifier. MB10F IC is a Bridge rectifier used to rectify the AC input signal into DC Signal. This IC has four pins, and the polarity has marked on it. This PCB’s operating voltage is 220V AC power supply. FM8301SS is a non-isolated step-down LED driver IC. It’s 8SOP, but the no of pins has seven used to drive the LED. It has 2;2microfarad electrolytic capacitors it’s used to store charges for a bit of time 400V. It has an inductor.

Components: Capacitor-2.2 Microfarad, Inductor, FM8301SS, MB10F, ES1J.

Features:

  • Direct AC Source
  • It has a total of 10 LED
  • It does not need any external driver circuit
  • It has an inbuilt driver IC

    SPECIFICATIONS:

    Type DOB LED PCB
    Input Voltage 220VAC
    No of LEDs 10
    Colour White
    LED Diameter 40mm
    Power 9W
    Wire Mounting Diameter (Small hole) 3.0mm
    Mounting Diameter of (large Hole) 4mm
    Thickness 13mm
    Connection Point Line and Neutral
    No. of Connecting Point 02
    Country of Origin China
