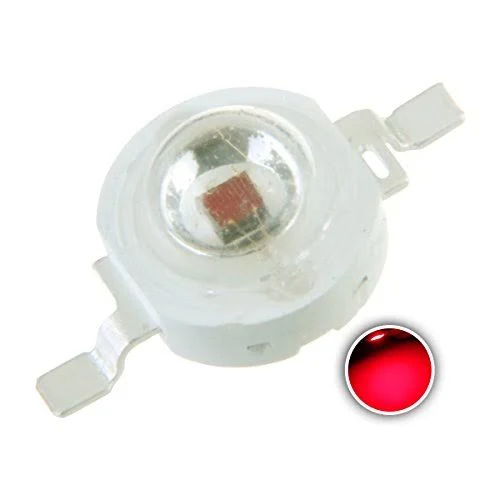

3 Watt RED SMD LED

Description

2 Pin RED LED- 3 Watt SMD RED LEDs are surface-mounted devices. it has high efficacy High low power consumption wide viewing angle and a compact form factor. LED is called the fourth generation light source, energy-saving, environmental protection, safety, long service life these features make the package an ideal LED for lighting applications.  LEDs have the advantage that the 3 built-in LED chips can be controlled separately. The 3 switchable primary colors are red.

Features:

• Excellent Transiting Heat from LED Chip Operating under 350mA
• High Luminous Output
• No UV
• Portable Flashlight
• Garden lighting
• General Lighting

Features/Specs:

• Reverse Voltage: 5V
• Continuous Forward Current: 350mA
• Peak Forward Current: 1000mA
• LED Junction Temperature: 150°C
• Operating Temperature Range: -30 ~ +70°C
• Power Dissipation: 1×3 Watts

• 1 x 6Pin 3 Watt RED SMD LED
