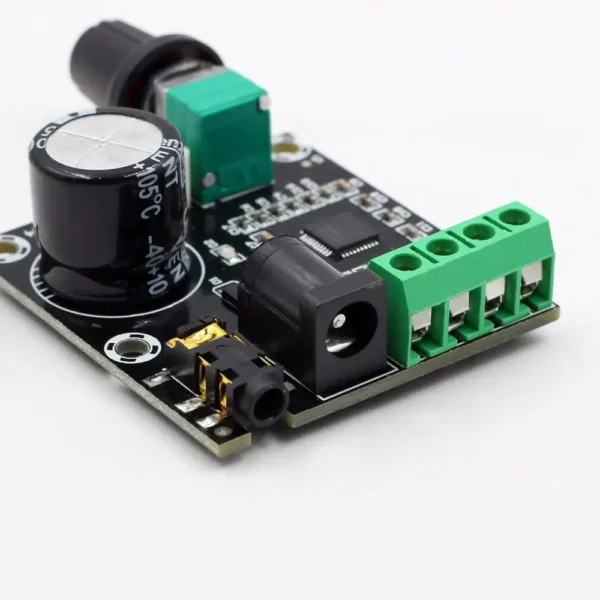

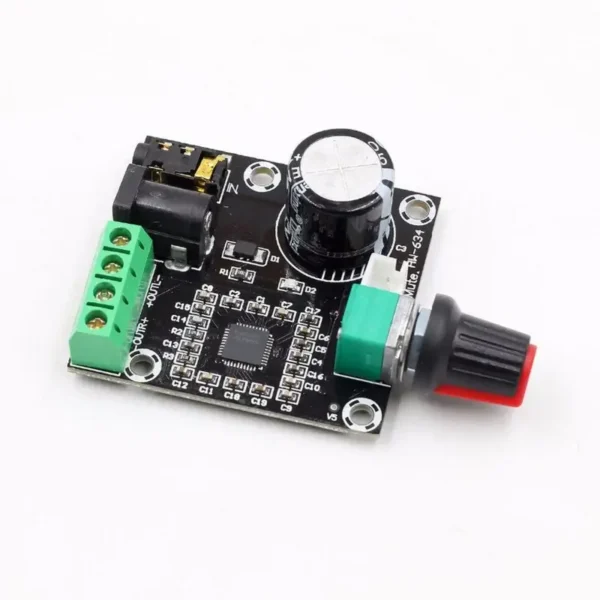

PAM8610 2X15W Audio Amplifier Class D Digital Dual Power Board

SKU: ES1594

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹399.00.Current price is: ₹312.00.

(Exclusive GST) Shipping calculated at checkout

10 People watching this product now!

Payment Methods:

Description

The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 12V supply at a much higher efficiency than competitors’ ICs.

The PAM8610 amplifier only requires very few external components, significantly saving cost and board space. This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40 pin QFN 6 x 6 mm package.

Note: This module may or may not have PAM 8610 written on the IC, so please place your order after verifying it.

How to use:

  1. The power supply voltage limit is 12V, do not use more than this voltage.
  2. The power supply is recommended for 12v, 3A power supply filter better.
  3. 4-8 inch stereo speakers recommended.
  4.  Do not short-circuit the audio output to each other or short to ground.
  5. Carefully check before electricity, and ensure the wiring is correct before electricity.

 Features :

  1. This plate with a switching function, SW short, will turn off the power amplifier.
  2. Working Mode: Class D (PWM modulation type).
  3. This module comes with a knob to control the volume level.
  4. It also has an Aux 3.5mm jack as an audio input.
  5. It can be powered via a 12v external adapter or power supply.

Package Includes :

1 x HW-634 – PAM8610 2X15W Audio Amplifier Class D Digital Dual Power Board
