OLED Display Module – 0.96 Inch I2C/IIC 4 Pin Blue

SKU: ES1019

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹229.00.Current price is: ₹177.00.

(Exclusive GST) Shipping calculated at checkout

15 People watching this product now!

Payment Methods:

Description

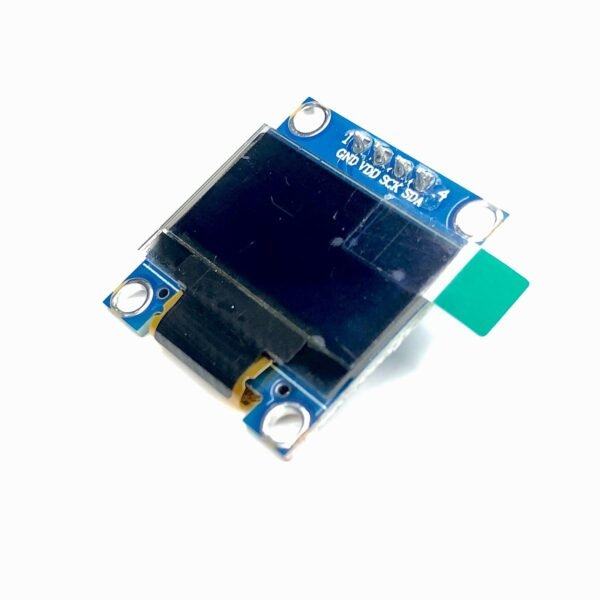

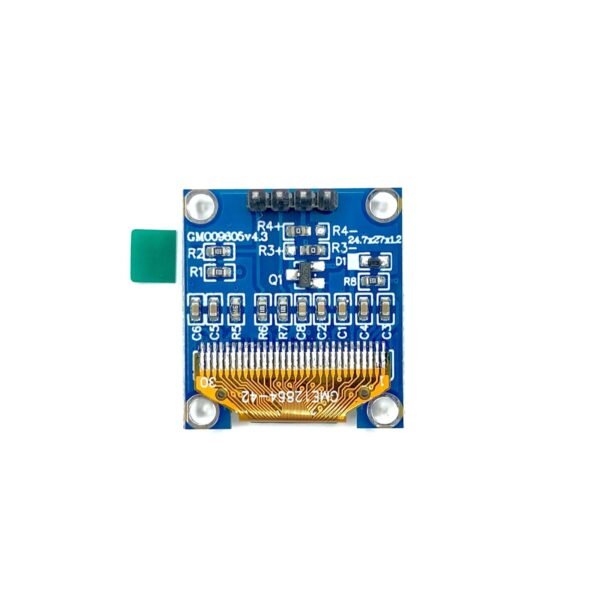

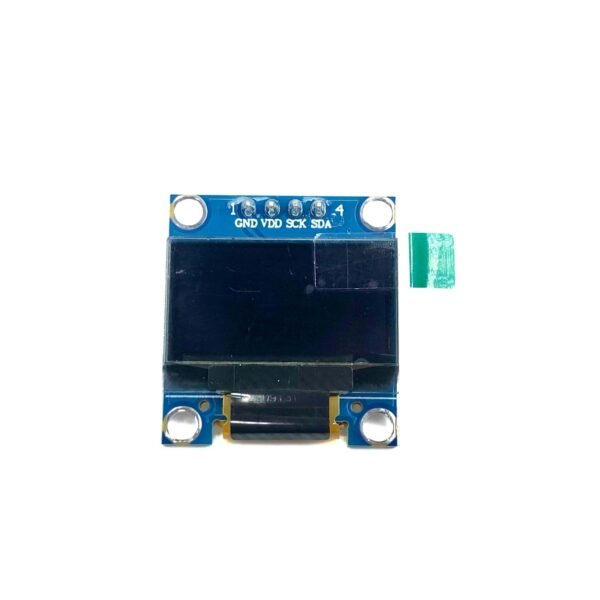

0.96 Inch 4 Pin OLED I2C IIC Communication Display 128*64 LCD Module

This is an OLED monochrome display module with I2C Interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, wide viewing angle, wide temperature range, and low power consumption.

Specification :

  • Working Voltage                      : 5V
  • Resolution                                 : 128×64
  • Power                                          : 0.06W
  • Wide power supply range      : DC 3V-5V
  • Temperature                             : -30°C to 70°C
  • Dimension                                 : 29.28 x 27.1 mm (LW)
  • OLED internal drive chip       : SSD136
  • Compatible with 3.3V and 5V control chip I / O level



Features:

  • Better resolution and viewing angle than traditional LEDs
  • Support for bit map images
  • Bright and crisp display under various lighting conditions

Pin Description:

  • GND : Power Gound
  • VCC  : 2.2V-5.5V
  • SCL  : CLK clock (High level 2.2V-5.5V)
  • SDA : MOSI data (High level 2.2V-5.5V)

Application:

  • Smartwatch
  • MP3
  • Thermometer
  • Instruments
  • DIY projects

Package Included:

1x OLED Display Module – 0.96 Inch I2C/IIC 4 Pin Blue
