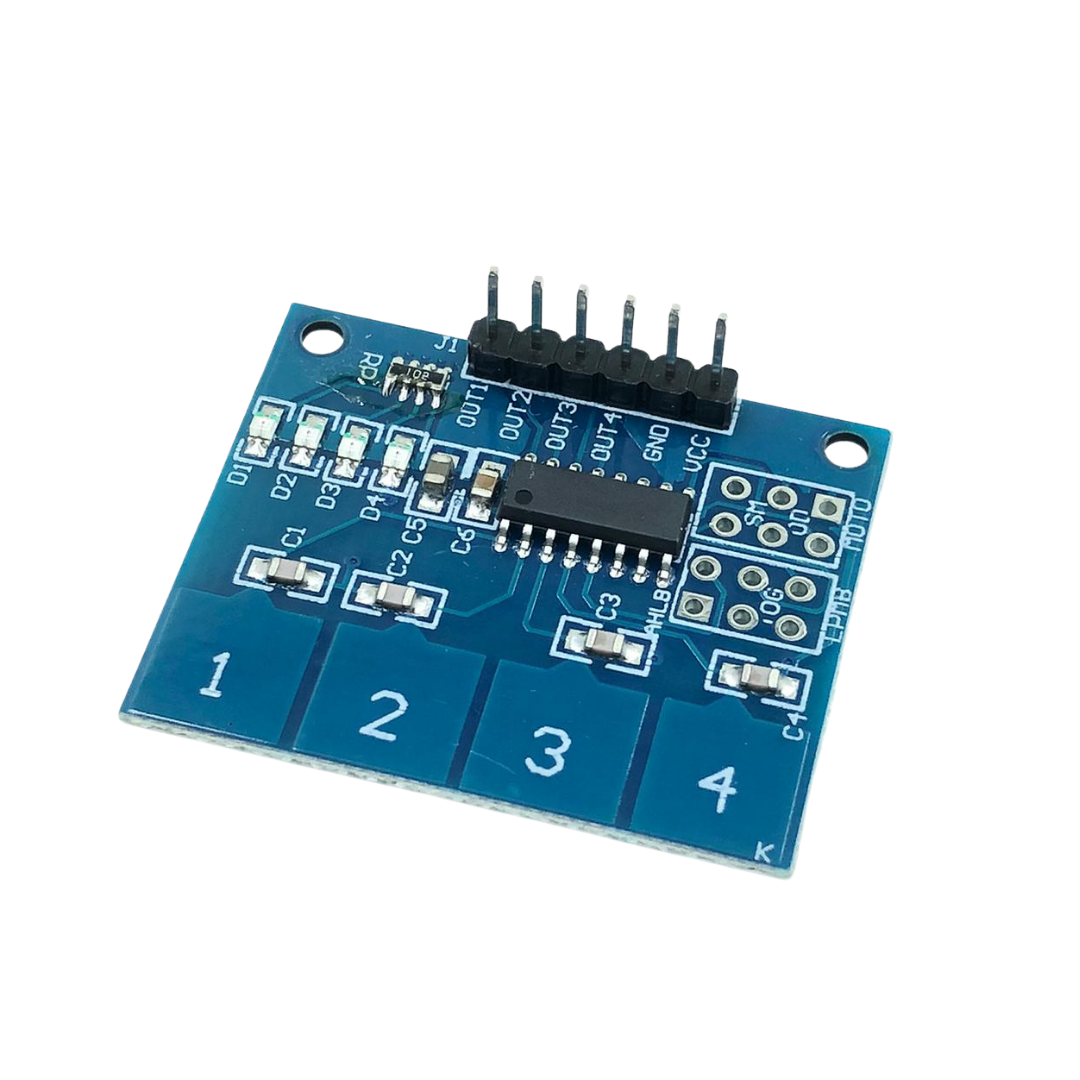

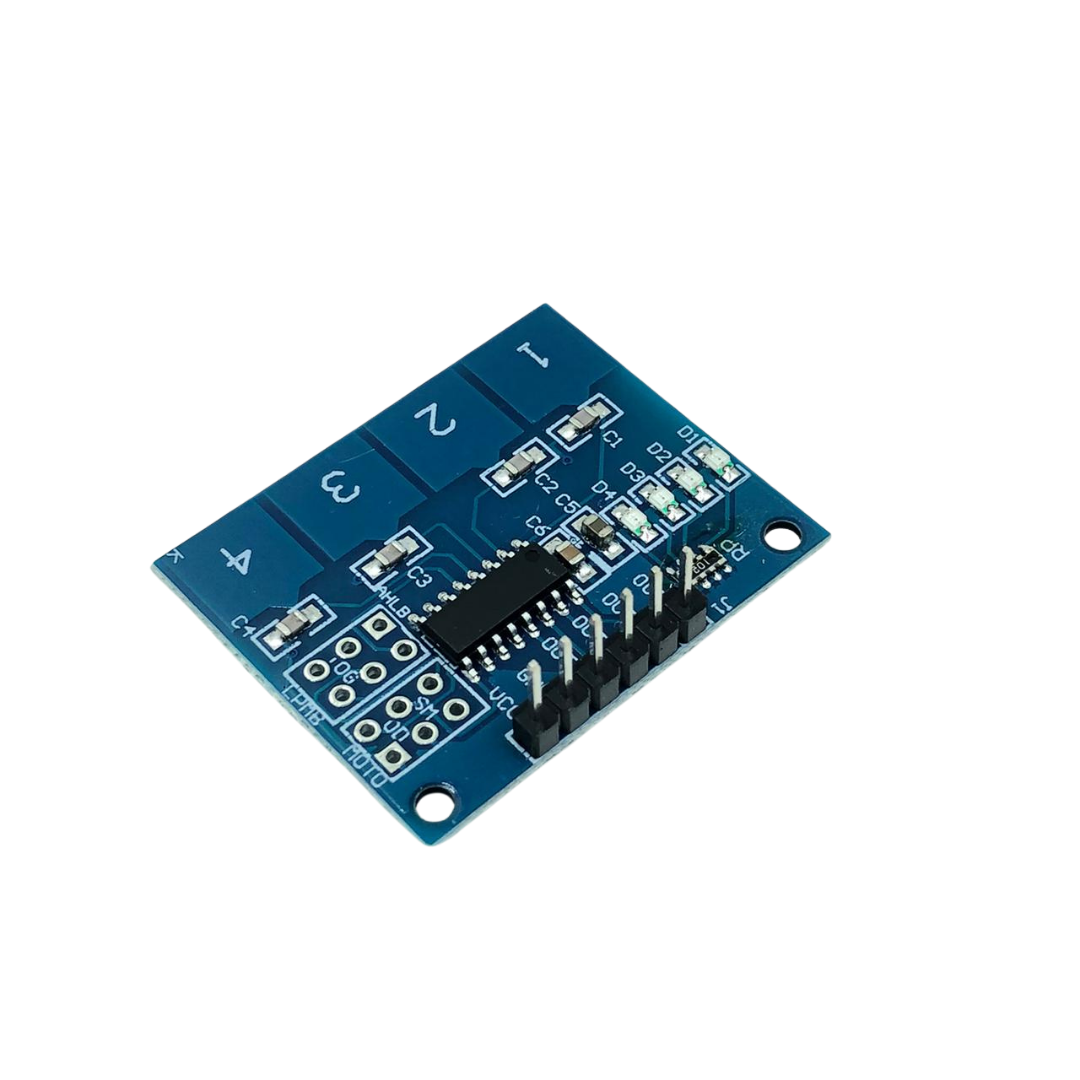

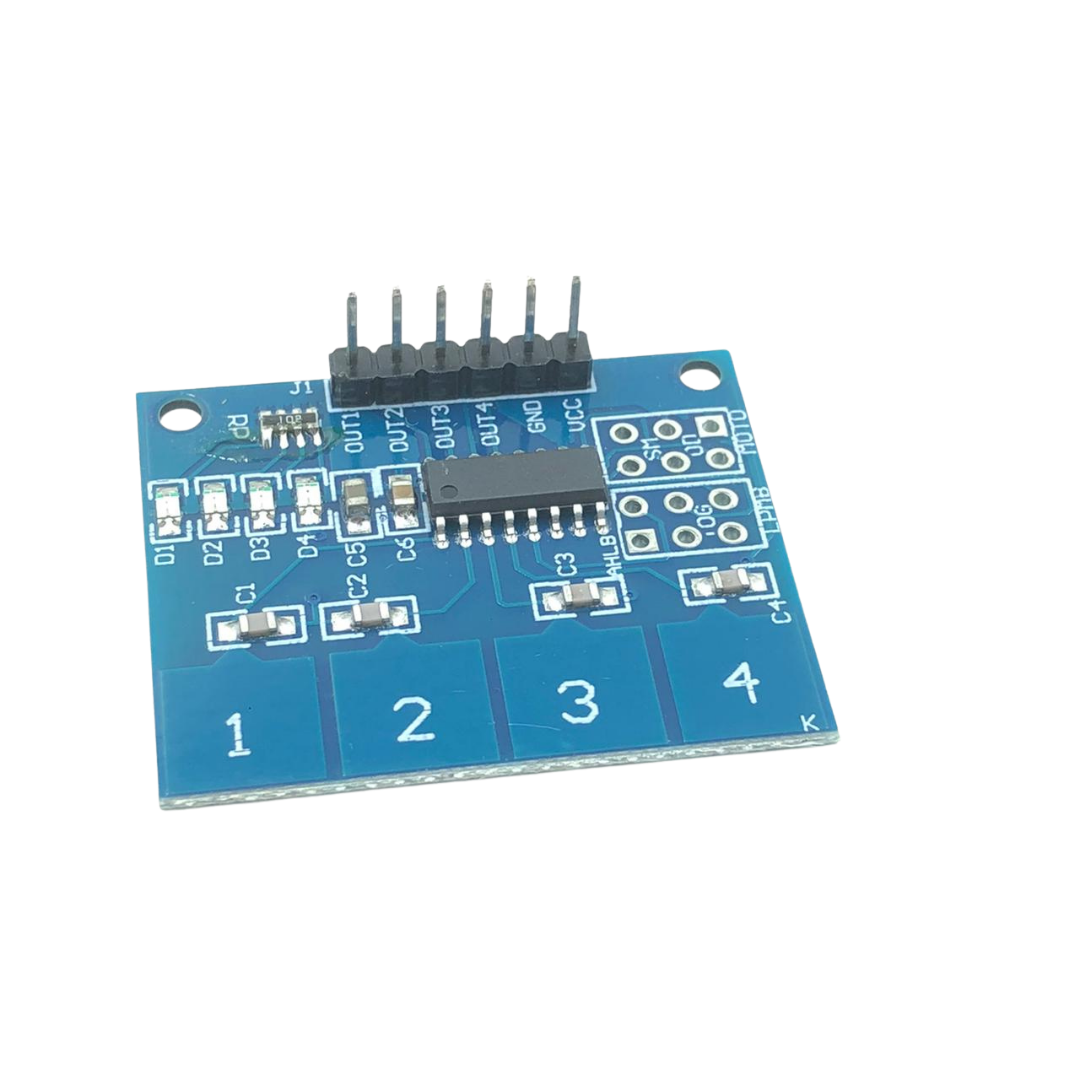

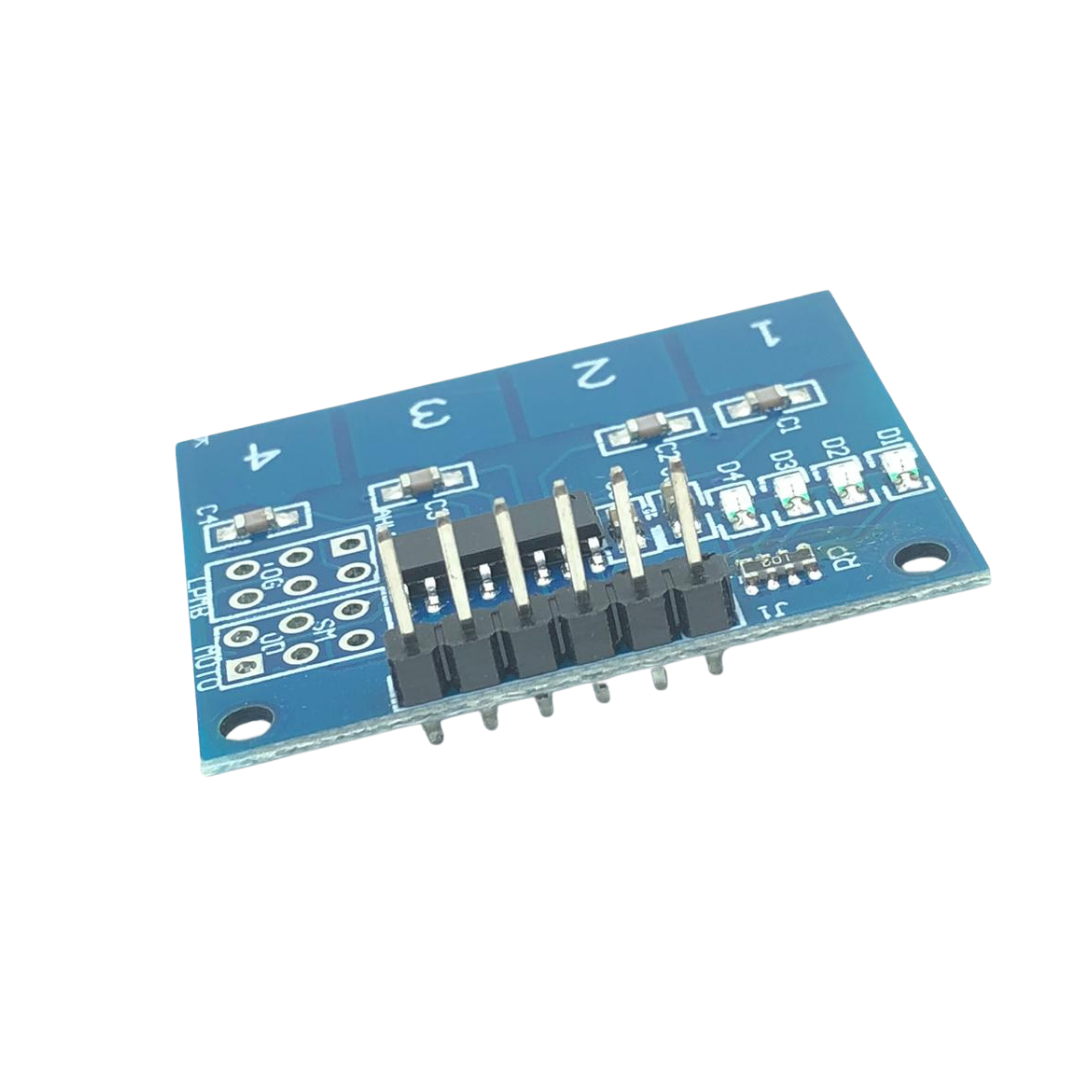

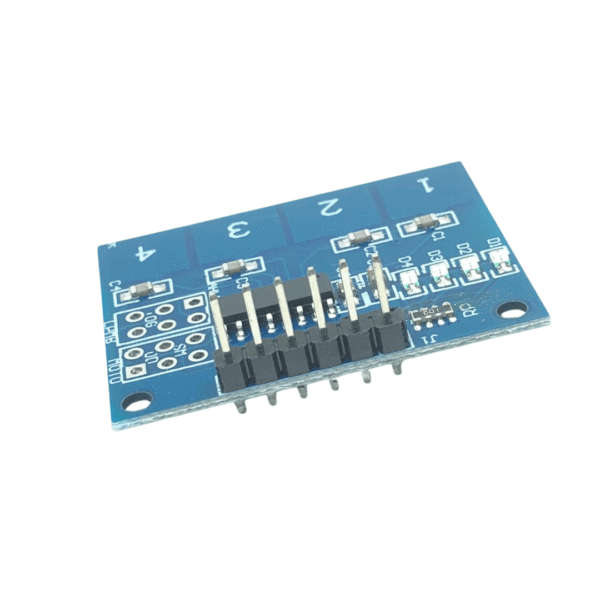

Name: TTP224- 4 Channel Capacitive Touch Sensor Switch Module
SKU: ES1900
Price: 65.00 INR
Availability: OutOfStock

Capacitive Touch Technology: Utilizes capacitive sensing technology with the TTP224 IC, designed for touchpad control. It features a 4-finger-sized touchpad for intuitive user interaction.
Jumper Configuration: The board includes jumpers that allow configuration of keypress output modes:
- Toggle or Timed mode
- Active High or Active Low output These jumpers provide flexibility in how the module interacts with external devices.
Response Time Adjustment: Separate jumpers are provided to adjust the response time of the pressed keys:
- Fast mode (60ms)
- Low power mode (160ms) This feature enables optimization of response times based on specific application requirements.
Output Interface: The module has 6-pin headers on the output side, with 4 pins dedicated to connecting to digital I/O pins of microcontroller boards such as Arduino or ARM STM32. This facilitates easy integration into various digital systems.
Status Indicators: Includes onboard SMD LEDs (4-level status indicators), one for each pressed key. These LEDs provide visual feedback of the current status of each touch-sensitive key.
Compatibility: Compatible with Arduino boards and other microcontroller platforms, making it suitable for applications requiring Human-Machine Interface (HMI) and mechanical button replacements.

Weight	0.020 g
Dimensions	8 × 8 × 0.5 in
