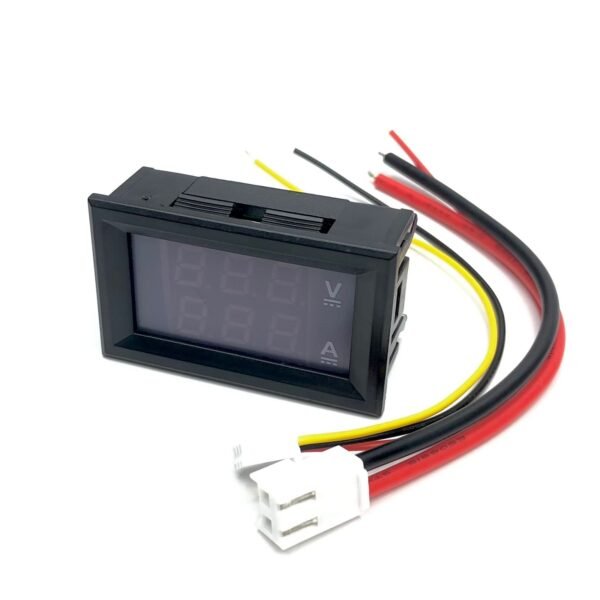

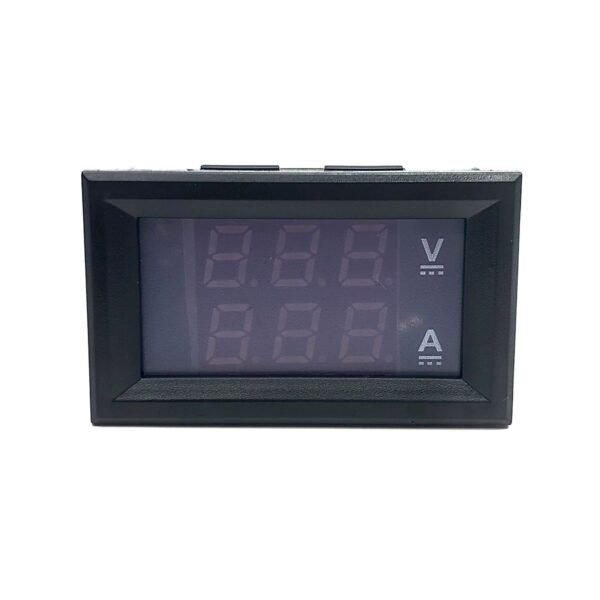

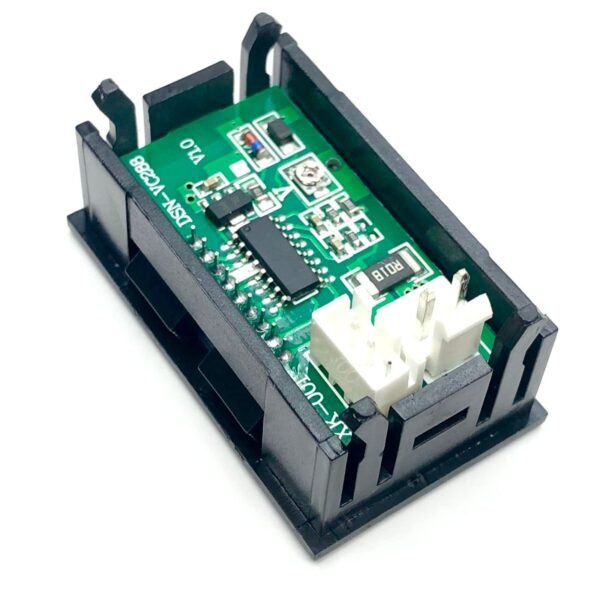

Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module

Specifications:-

Input Voltage – 4.5V to 30V DC

Input Current – <= 20mA

Display Color – Red (Voltage) , Blue (Current)

Measuring Voltage Range – 0V to 100V DC

Measuring Currrent Range – 0A to 10A

Measurement Accuracy – 1%

Minimum Voltage Resolution – 0.1V

Minimum Current Resolution – 0.01A

Size – 48x29x21mm

Note:- Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning

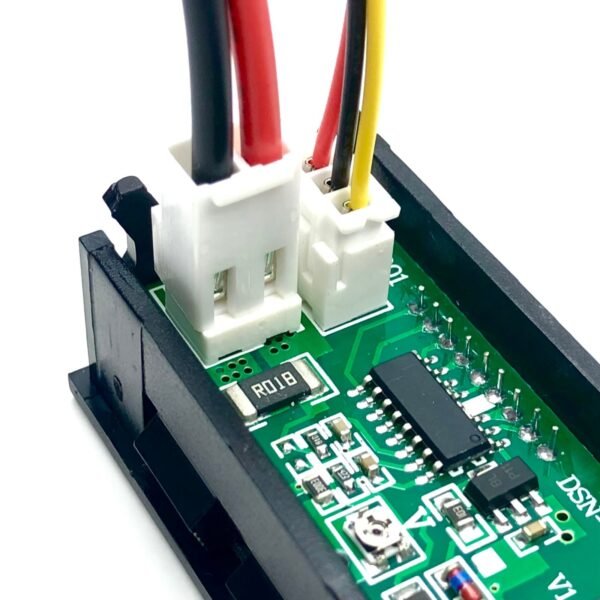

Wiring:-

Black line (thin): vacant or buck circuit (module) Negative
Red line (thin): power supply Positive
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input Positive
