RGB 9w AC DOB Led Circular PCB for Led Bulbs- Red, Green & Blue

SKU: ES1069

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹59.00.Current price is: ₹39.00.

(Exclusive GST) Shipping calculated at checkout

17 People watching this product now!

Payment Methods:

Description

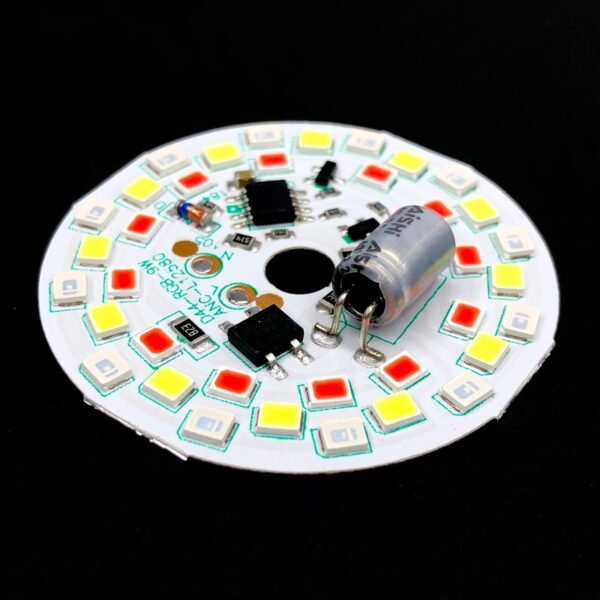

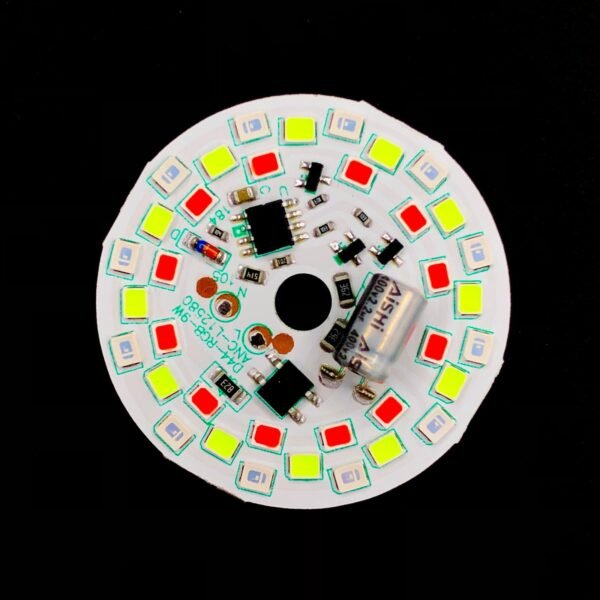

This is a 9W Multi 7-Colour 220VAC 43mm DOB LED (Pack of 5); this PCB has two main IC, which are used to drive the full LEDs and one another IC, known as a bridge rectifier. MB10F IC is a Bridge rectifier used to rectify the AC input signal into DC Signal. This IC has four pins, and the polarity has marked on it. This PCB’s operating voltage is 220V AC power supply. It has an eight pin IC which is used to Drive the LED. Its an RGB LED

 Applications:

  • Its mainly used in decorative products
  • It’s used in home décor LEDs
  • Headlight
  • Street lights

Features:

  • Direct AC Source
  • It has a total of 30 LED
  • It does not need any external driver circuit
  • It has an inbuilt driver IC

SPECIFICATIONS:

Type DOB LED PCB
Input Voltage 220VAC
No of LEDs 30
Colour Multi 7-Colour
LED Diameter 43mm, height-12mm
Wire Mounting Diameter 4.5mm
Thickness 12mm
Connection Point Line and Neutral
No. of Connecting Point 02
Power 9 Wattage
Country of Origin China
