NEO 6 GPS Module with EEPROM

Description

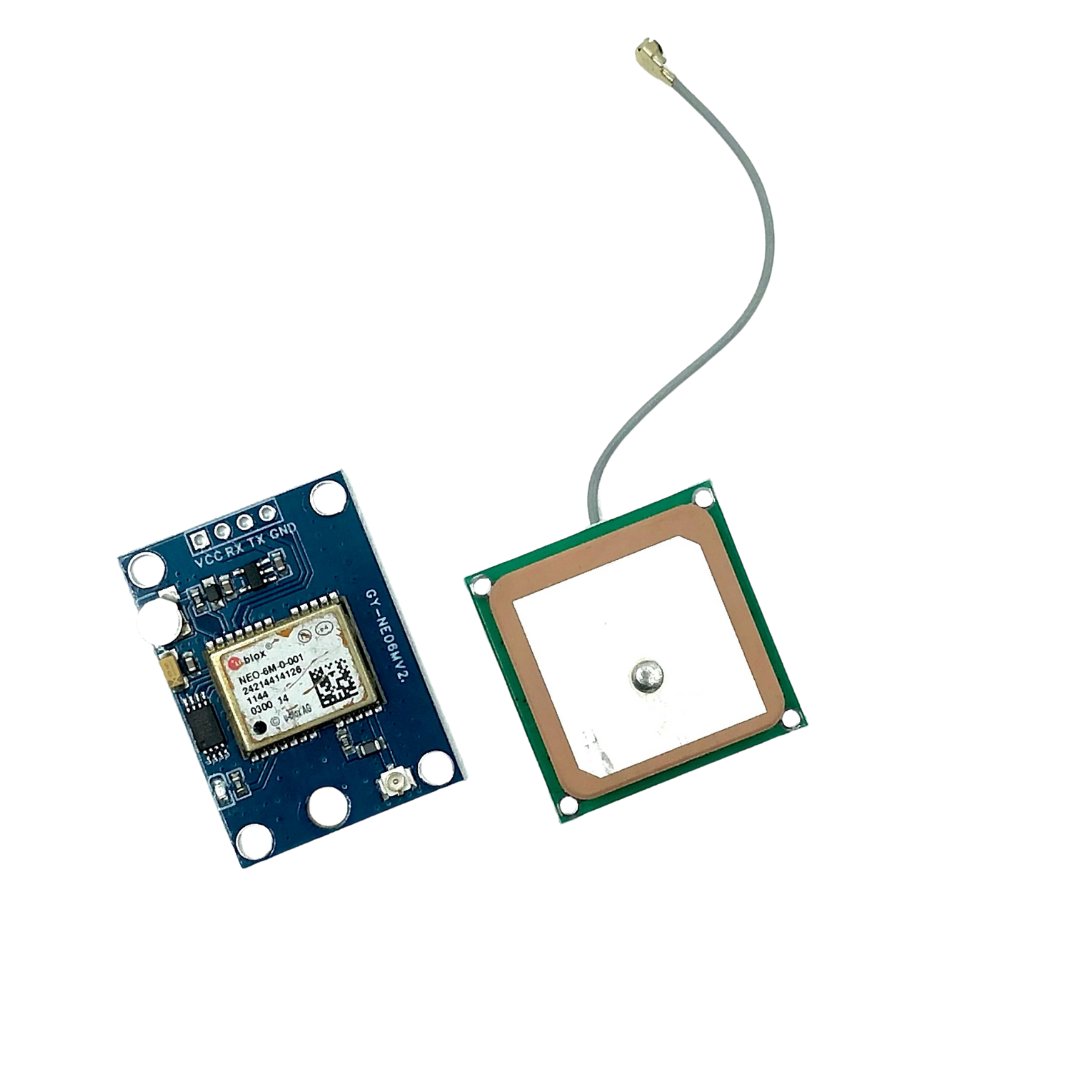

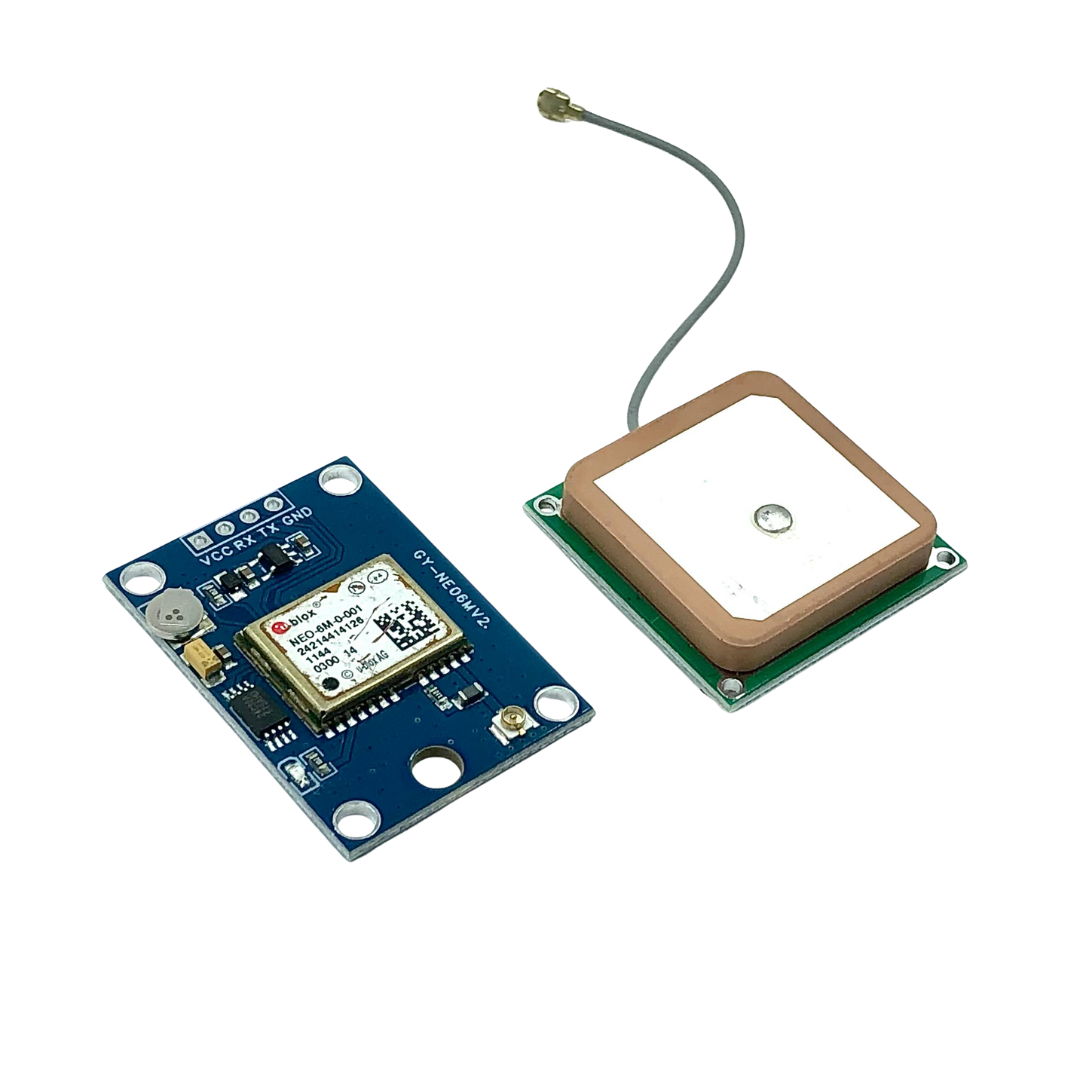

NEO-6M GPS Module with EEPROM

• Technology: Based on the u-blox NEO-6M chipset, providing reliable GPS positioning.
• Antenna: Comes with an external GPS antenna and a UFL connector for flexible mounting.
• Battery: Includes a rechargeable Li-ion battery for backup, allowing for hot starts and quick GPS lock.
• Performance:
  • Position Update Rate: 5 Hz
  • Cold Start Time: 38 seconds
  • Hot Start Time: 1 second
• Sensitivity: High sensitivity suitable for indoor use and mobile applications.
• Output: Provides a high-precision binary output.
• SBAS Support: Compatible with WAAS, EGNOS, MSAS, and GAGAN for improved accuracy.
• Connections:
  • Vcc: Input Voltage Supply (3.3V)
  • • • Gnd: Ground
      • RX/TX: Serial TTL pins for communication
      • UFL Connector: For connecting the GPS antenna.
