Description

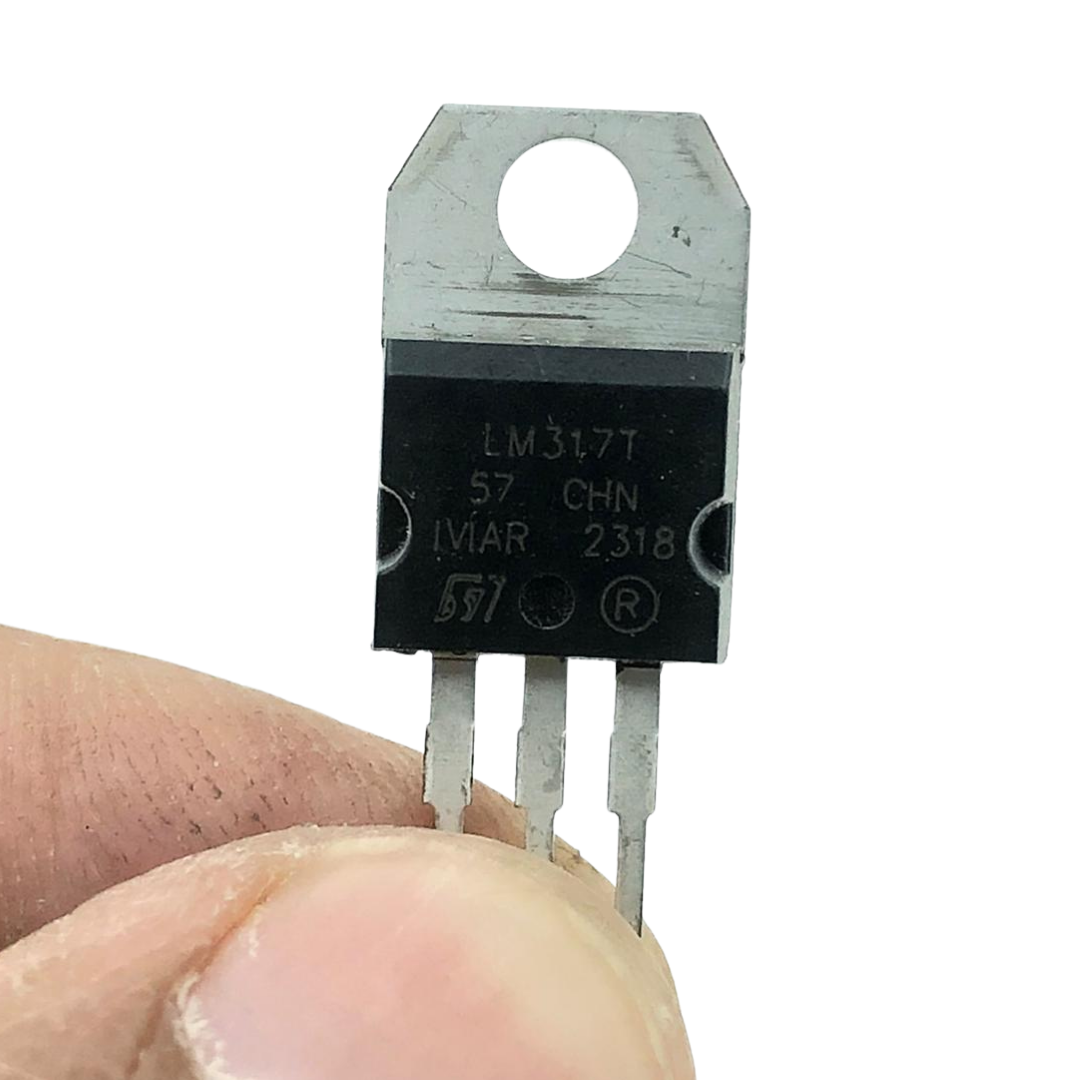

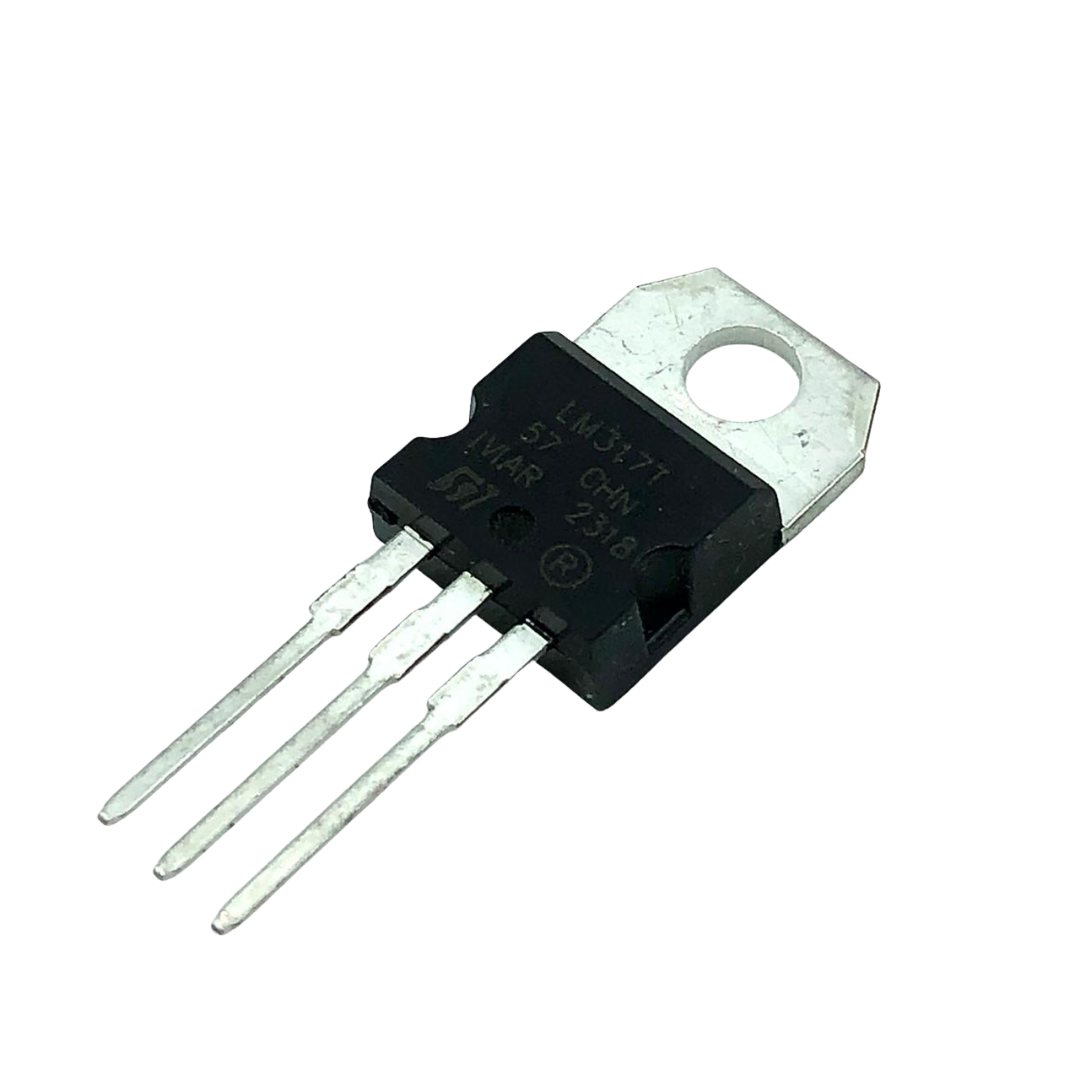

It is an LM317T Adjustable Voltage Regulator. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider. This makes the device exceptionally easy to use and thereby eliminating the need for stocking of many fixed regulators.

Features and Specifications:

• Mounting Type:	Through Hole
  Model Series:	LM317T
  No. of Outputs:	1
  Output Type:	Adjustable
  Polarity:	Positive
  Input Voltage (V):	3V to 40V Output Voltage: 1.2 ~ 37 Max. Operating Current (A) 1.5 Operating Temperature (°C): 0 to 125 Load Regulation 0.10% Line Regulation 0.01% Length (mm): 10 Package Content: 1 x LM317 Voltage Regulator
