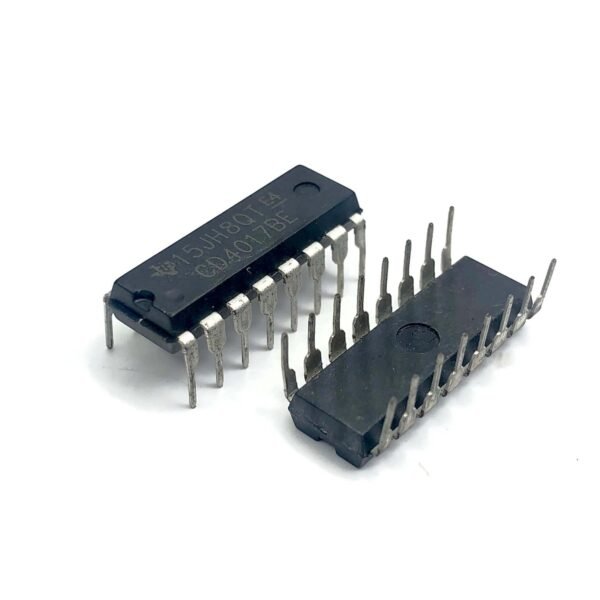

CD4017 4017 IC CMOS Binary Decade Counter Diver IC

The 4017 is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP. The HCF4017B is 5-stage Johnson counter having 10 decoded outputs. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the clock input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times. This counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advanced via the clock line is inhibited when the CLOCK INHIBIT signal is high. A high RESET signal clears the counter to its zero count. Use of the Johnson decade-counter configuration permits high speed operation, 2-input decimal decode gating and spike-free decoded outputs. Anti-lock gating is provided, thus assuring proper counting sequence. The decoded outputs are normally low and go high only at their respective decoded time slot. Each decoded output remains high for one full clock cycle.

• Product Type: Decade Counter
• IC Number: CD4017 or 4017 IC
• Functions: counts from 0 to 10 as well as decode to binary number
• Output type: binary number
• Pin counts: 16
• Technology: CMOS
• Pin type: Through Hole
