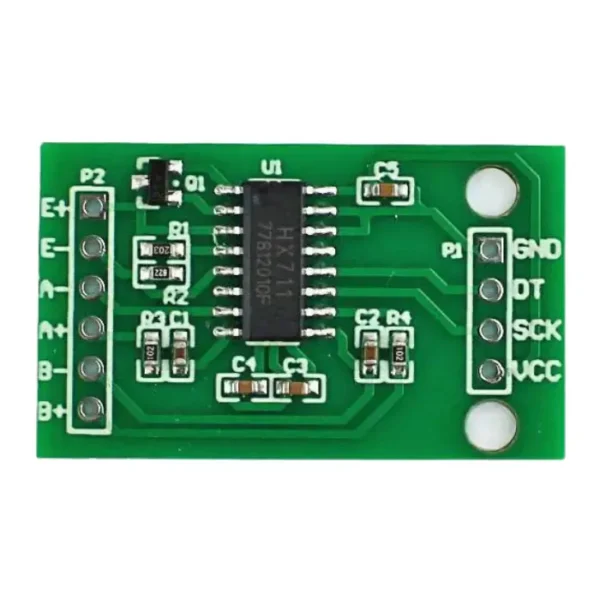

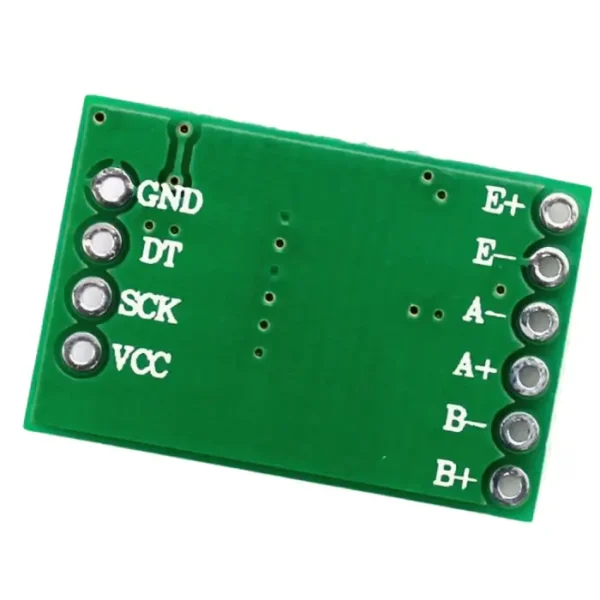

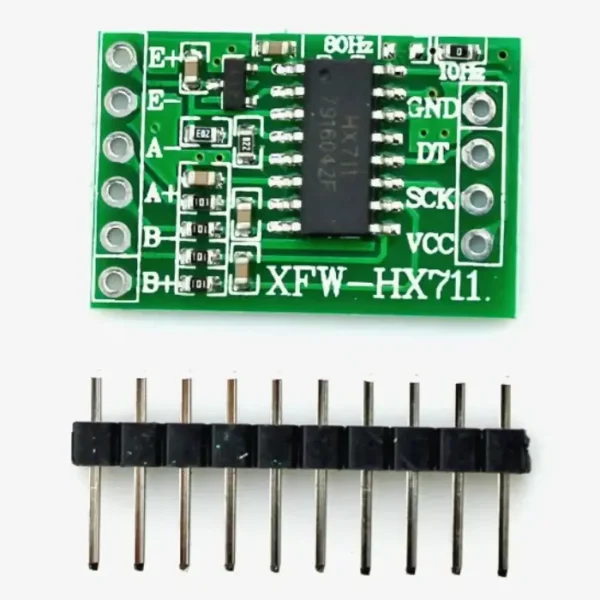

HX711 Load Cell Module

SKU: ES1605

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹70.00.Current price is: ₹47.00.

(Exclusive GST) Shipping calculated at checkout

14 People watching this product now!

Payment Methods:

Description

  • Differential input voltage: ±40mV (Full-scale differential input voltage is ± 40mV)
  • Data accuracy: 24-bit (24-bit A / D converter chip.)
  • Refresh frequency: 10/80 Hz
  • Operating Voltage: 2.7V to 5VDC
  • Operating current: <10 mA

This HX711 Load Cell Amplifier Module allows you to easily read load cells to measure weight. This Load Cell Amplifier Module uses 24 high-precision A/D converter chips HX711. This module is specially designed for the high-precision electronic scale design, with two analog input channels, and the internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge-type pressure bridge.

The HX711 uses a two-wire interface (Clock and Data) for communication. HX711 has added advantages such as high integration, fast response, and immunity. This is why any microcontroller’s GPIO pins should work, and numerous libraries have been written, making it easy to read data from the HX711.
