Digital Clamp Meter 266 for AC/DC current voltage measurement Digital Multimeter

SKU: ES1132

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹470.00.Current price is: ₹377.00.

(Exclusive GST) Shipping calculated at checkout

13 People watching this product now!

Payment Methods:

Description

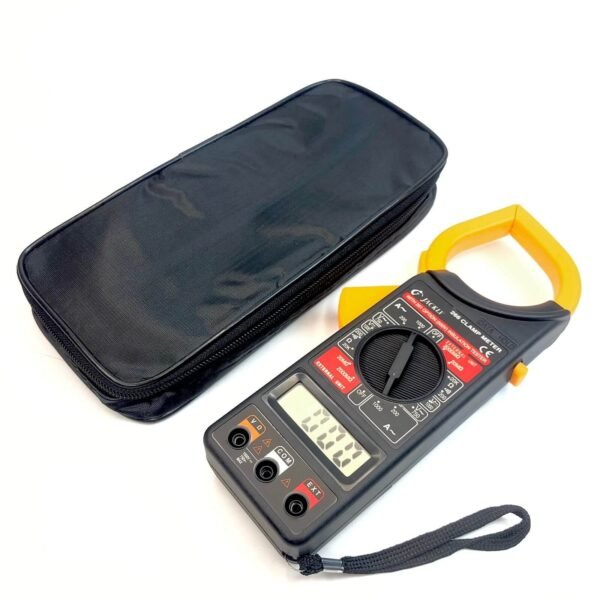

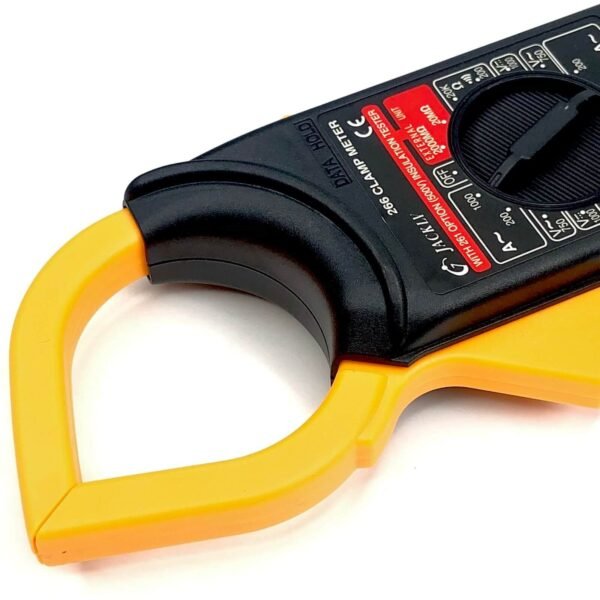

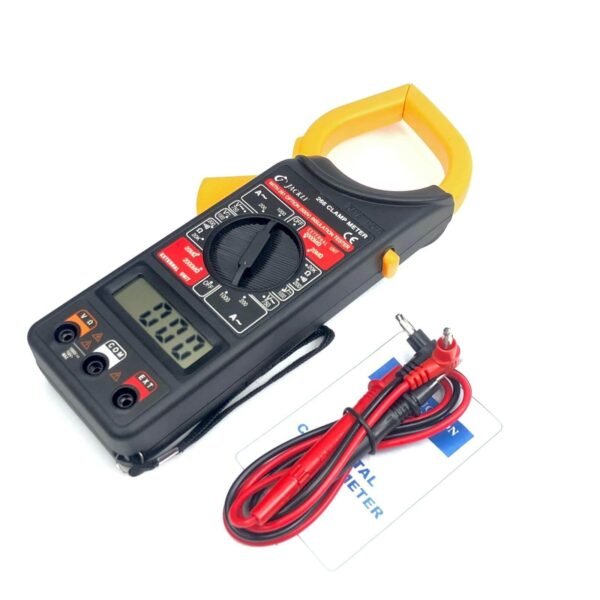

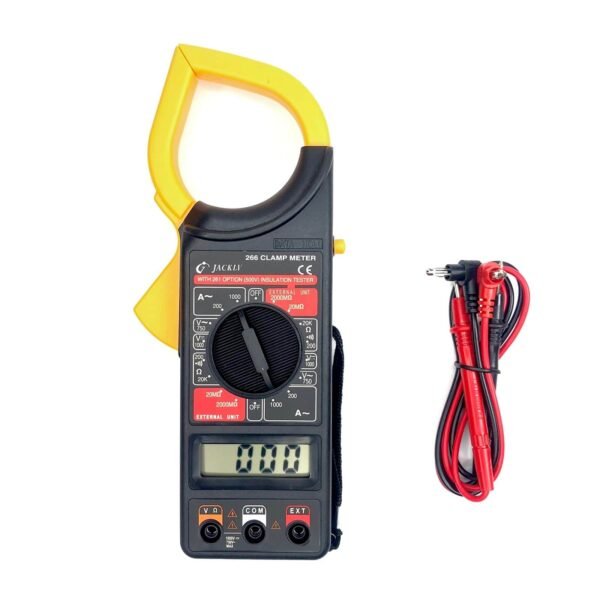

Model 266 digital clamp meter is a professional clamp meter used for measuring DC and AC voltage, AC current, resistance, and diode with continuity buzzer, data hold, and insulation test function. AC Tong tester is a good helper to test and troubleshoot faults present in the electrical and electronic system. It’s easy to use it in narrow spaces.

FEATURES

  • Digital clamp meter Common function: 3 1/2 digits LCD, Max. Reading 1999. data-hold function. Take battery signal sensor. Plug-in Insulation Tester Adapter 500VDC
  • The clamp multimeter will not be easily destroyed by overload testing for overload protection, and the meter will turn off the auto power after 10 minutes of no action to save energy
  • Autoranging clamp multimeter can be used to measure AC voltage, AC current, resistance, diode test, data hold, maximum hold value. Troubleshooting electrical problems safely.
  • If you have basic knowledge about multimeters then you can try this small multimeter for basic continuity check and voltage measurement and can also be used for heavy ampere measurement in heavy load wires.
SPECIFICATION
DC Voltage: 1000V(±0.5%)
Resolution: 1V
AC Voltage:  750V(±1.2%)
Resolution: 1V
AC Current: 20-1000A(±2.5%)
Resolution: 1A
Resistance: 20M-2000M(±1.0%)
Resolution: 10K-1M
LCD Max. Reading: 1999
LCD Display Size: 14mmx47mm
Clamp Diameter: 2.13cm
Size: 230mmx70mmx37mm
Country of Origin China
