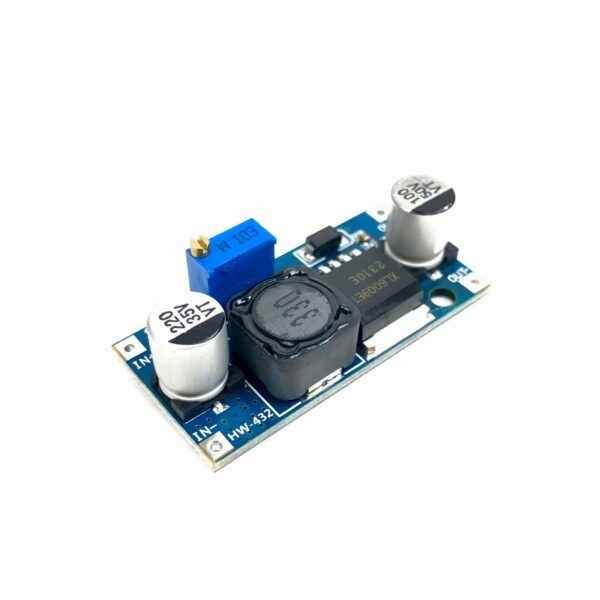

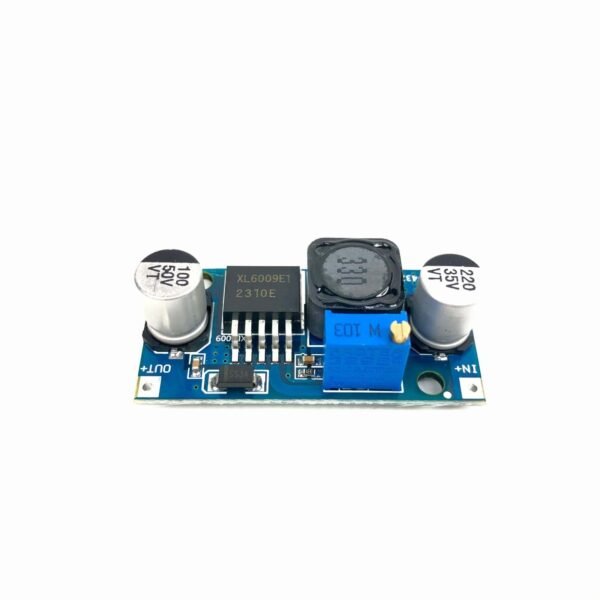

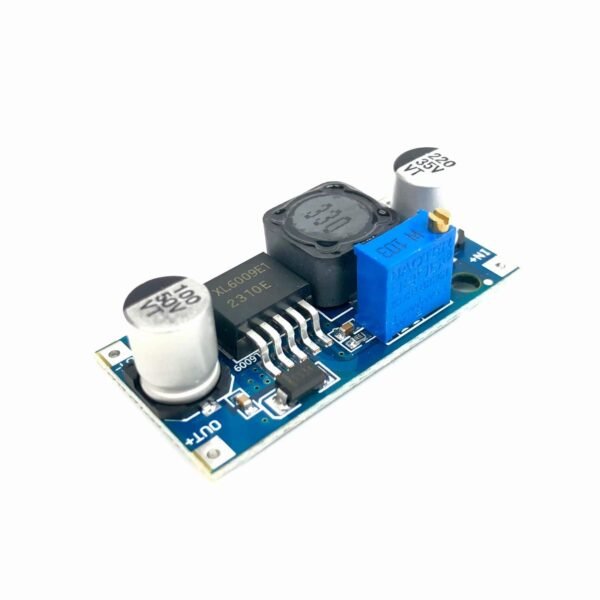

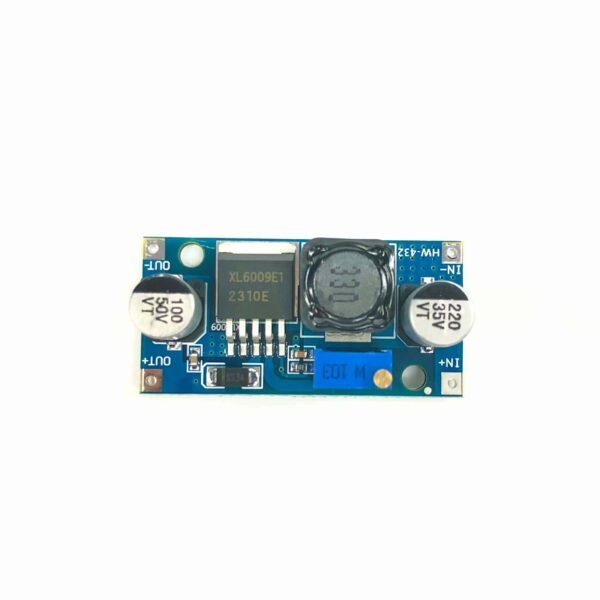

DC to DC Adjustable Step Up Booster XL6009

SKU: ES1214

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹99.00.Current price is: ₹67.00.

(Exclusive GST) Shipping calculated at checkout

19 People watching this product now!

Payment Methods:

Description

This XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%. High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.

Input Voltage (V) 3 to 32
Input Current(A) 4
Output Voltage(V) 5 ~ 35
Output Ripple(mV) 50
Efficiency 94%
Switching Frequency(KHz) 400
Load Regulation ±0.5%
Voltage Regulation ±0.5%
