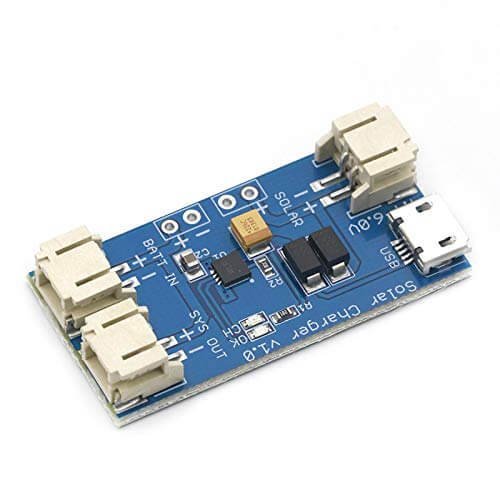

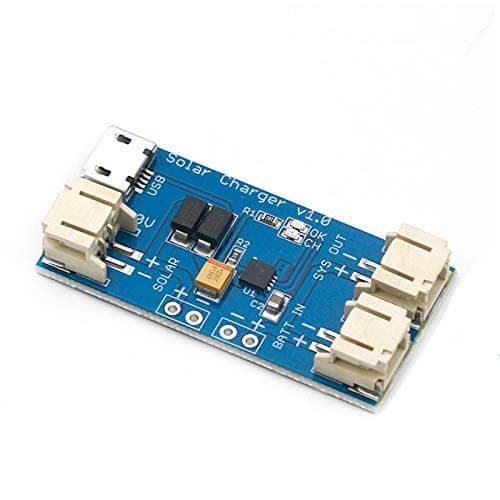

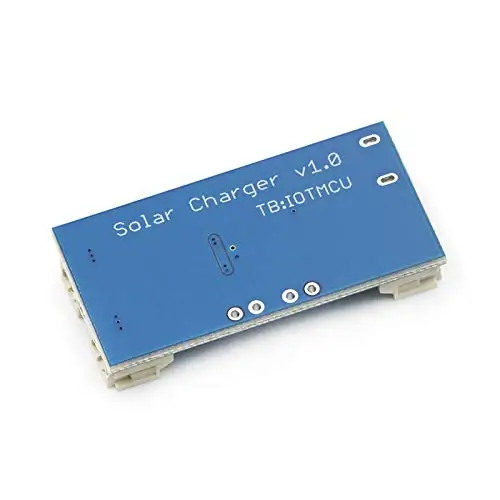

CN3065 v1.0 Mini Solar Lipo Lithium Battery USB Charger Board Module

SKU: ES1581

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹299.00.Current price is: ₹191.00.

(Exclusive GST) Shipping calculated at checkout

20 People watching this product now!

Payment Methods:

Description

This is a supermini Solar Lipo charger based on the CN3065 – a single lithium battery charge management chip.

This Solar charger provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium-ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.

  • Solar panel input: 4.4-6V
  • Max charge current: 500mA
  • Interface: 2-pin JST connectors(or PH2.0)
  • Short circuit protection
  • Continuous Charge Current Up to 500mA
  • Battery status indication ( Red : Charging, Green: Charged )
  • Support USB Charge (Micro-USB Connector)
  • Size:2cm x 4cm
