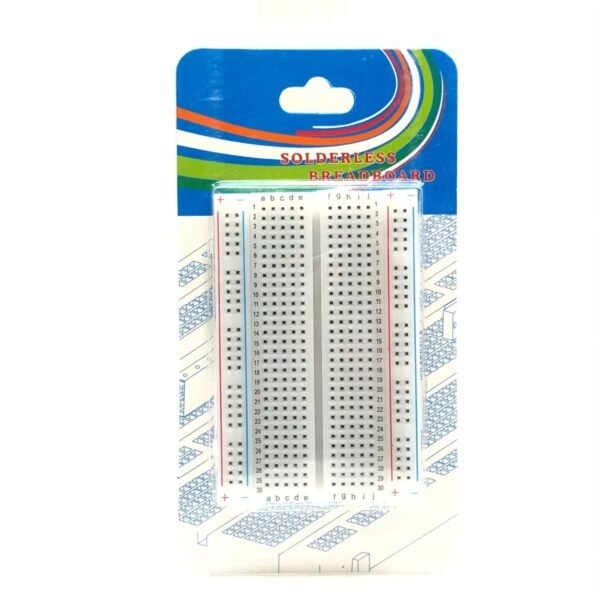

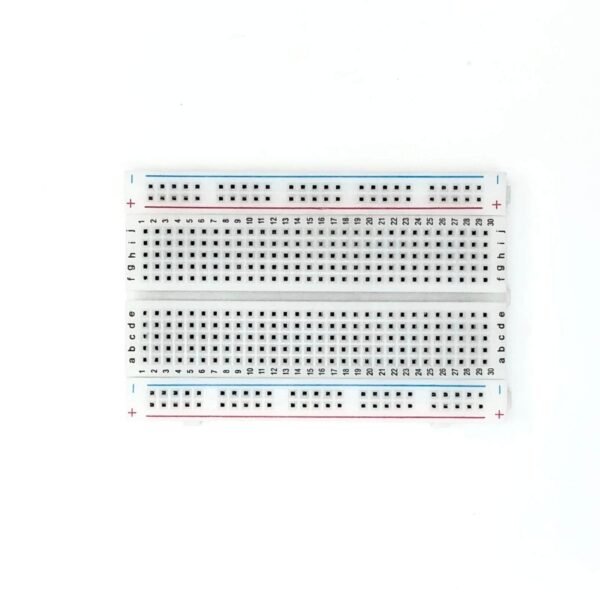

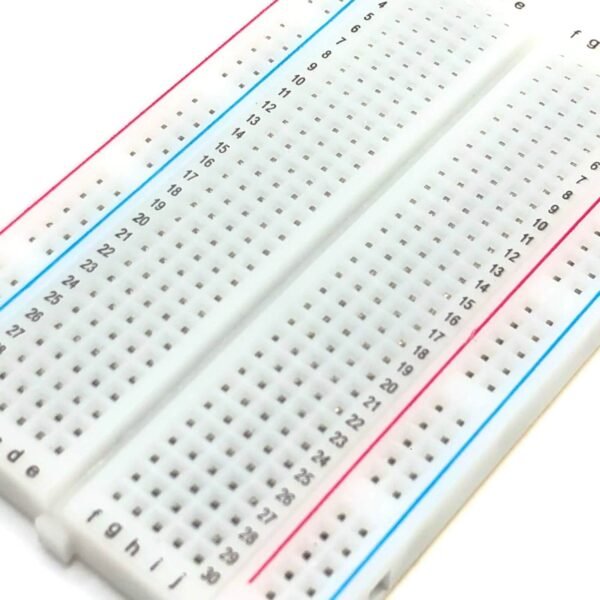

400 Point Solderless Breadboard

SKU: ES1459

Electro Store Shopping Event

Hurry and get discounts on all Hardware Products up to 20%

ELECTRO20

Original price was: ₹60.00.Current price is: ₹40.00.

(Exclusive GST) Shipping calculated at checkout

18 People watching this product now!

Payment Methods:

Description

Solderless breadboards are commonly used for prototyping because they allow you to quickly build temporary circuits without soldering. Breadboards accept most through-hole parts and up to #22 wire. When you’re done or want to change your circuit, it’s easy to take your circuit apart. For best results, use solid wires when breadboarding; you’ll find pre-cut jumper wire kits and premium jumper wires especially convenient. Two sides of the breadboard have tabs and the other two sides have compatible slots, which lets you connect multiple 400-point breadboards for more prototyping space. The breadboard also features a masked adhesive backing that can be used to secure it to your project.

  • One terminal strip, 300 Tie-Points
  • Two distribution strips, 100 Tie-Points
  • ABS Plastic material
  • Completely reusable
  • Coordinates for easy component placement
  • Phosphor bronze nickel plated spring clips
  • Accepts a variety of wire sizes (20-29 AWG)
  • Dimensions: 82mm x 106mm x 8.5mm
