2x8cm Double Sided Universal PCB Prototype Board

Original price was: ₹25.00.Current price is: ₹16.00.

SKU: ES1338 Categories: ,
Description

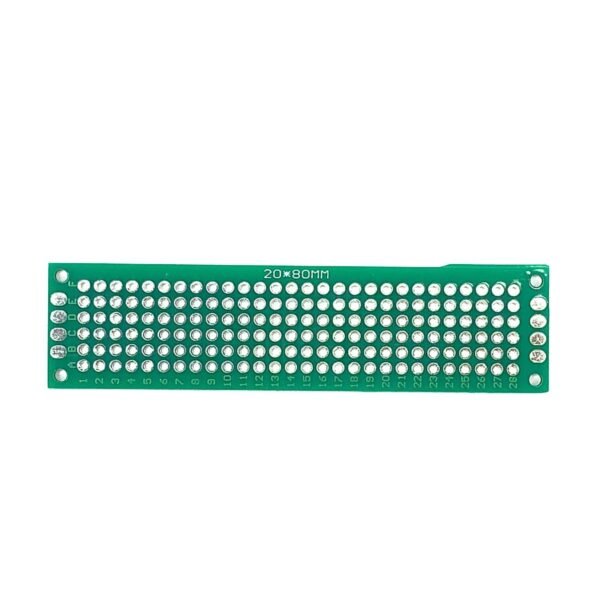

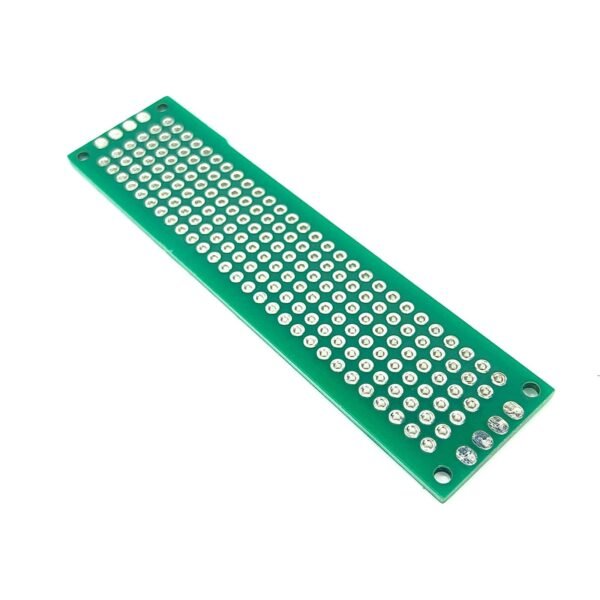

This is 2 x 8 CM Universal PCB Prototype Board Double-Side High-quality universal prototyping board with standard 0.1″ spacing through holes. It has high-quality FR4 material, Double-sided, HASL, NC CNC drilled. Printed Circuit Board prototype double Sided PCB, also known as two-layer PCB is a type of PCB that has conductive copper layers on both sides of the board. Simply put, double-sided PCB comes with two-sided traces or paths i.e. top layer and bottom layer. Universal PCB. Universal printed boards are intended for prototyping electronic circuits and for experimental verification of circuit concepts. They are also used for the production of unitary electronics.

Specifications:

  • Type: Double-Sided
  • Dimension: 2 x 8 cm
  • Material: glass fiber FR-4
  • Thickness: approx. 1.6mm
  • Hole Pitch: approx. 2.54 mm
  • Hole Diameter: Approx. 1 mm
  • Mounting Hole Diameter: Approx. 2 mm
  • Color: Green Basic,Silver Tone
Additional information
Weight 0.005 kg
Dimensions 2 × 8 × 0.2 cm
