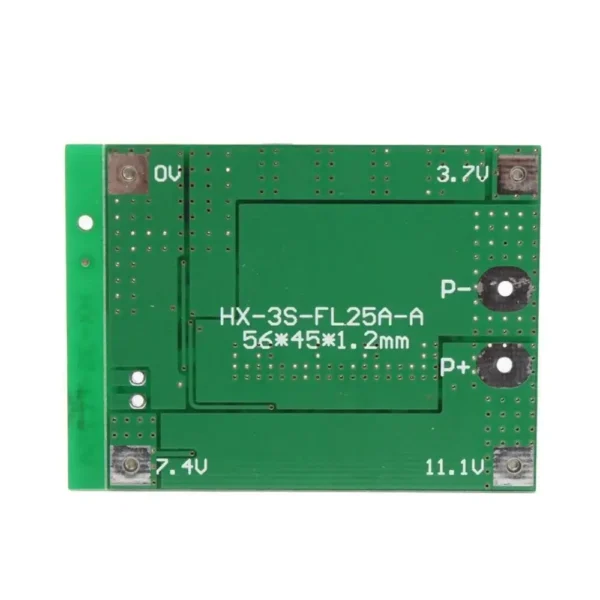

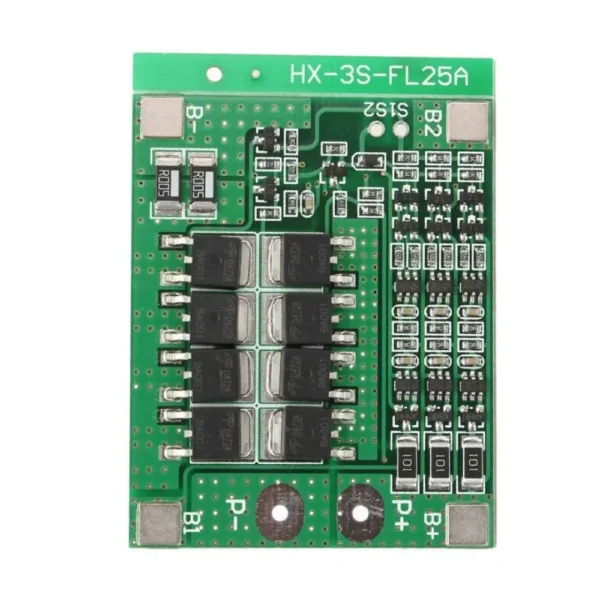

12.6V BMS 3S 25A 18650 Lithium Battery Protection Board

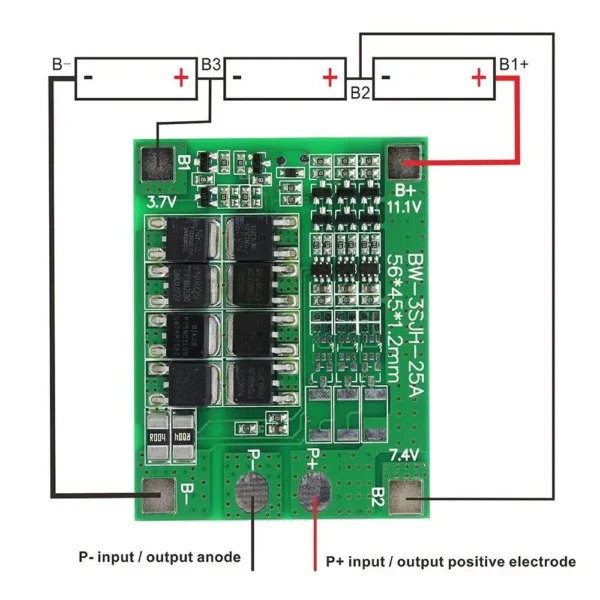

This is 3S 12V 25A 18650 Lithium Battery Protection Board 11.1V 12.6V High Current With Balanced Circuit Over Charge Over-Discharge Over Current And Short Circuit Protection Function. Board charging and discharging are the same port, the board includes the balanced circuit.

When the charge balance, the board will be a bit warm, even after disconnecting the charger, some are still in the balance, will continue to warm for a while until below the equilibrium break threshold.

The protection board cannot be used for iron lithium polymer battery (for other batteries, no matter what material, as long as the overvoltage and put voltage can be used for cutting), electric finish machinery, electric bicycle batteries, car, and motorcycle starter battery protection.

Specifications :

1. Overcharge voltage range: 4.25-4.35v + 0.05v.
2. Over Discharge voltage range: 2.3-2.7v + 0.05v.
3. Operating current: 0 – 25A.
4. Operating temperature: -40 – +50℃.
5. Instantaneous current: 35 – 40A.
6. Storage condition: -40 – +80℃.
7. Quiescent current: less than 30uA.
8. Balance current: about 40 – 50mA.
9. Effective life: more than 30000 hours.
10. Internal resistance: less than 100m ohm.
11. Short-circuit protection: protection, delayed self recovery.

Package includes:

1 x 12.6V BMS 3S 25A 18650 Lithium Battery Protection Board
