TTP223 Touch Key Switch Module Touching Button Self-Locking/No-Locking Single Channel RED

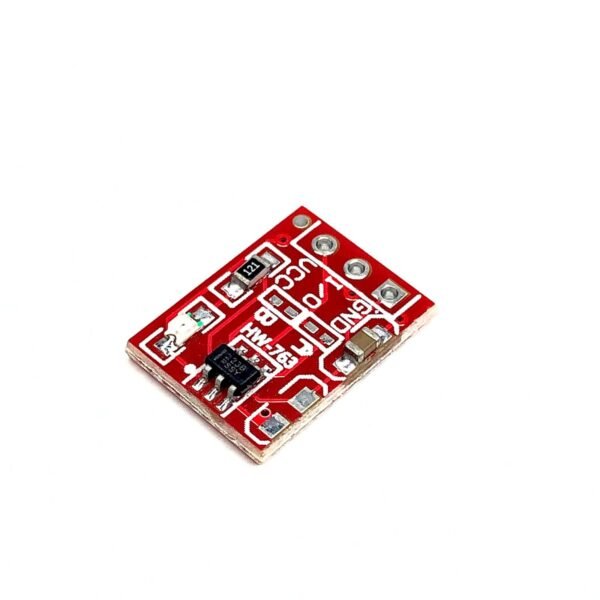

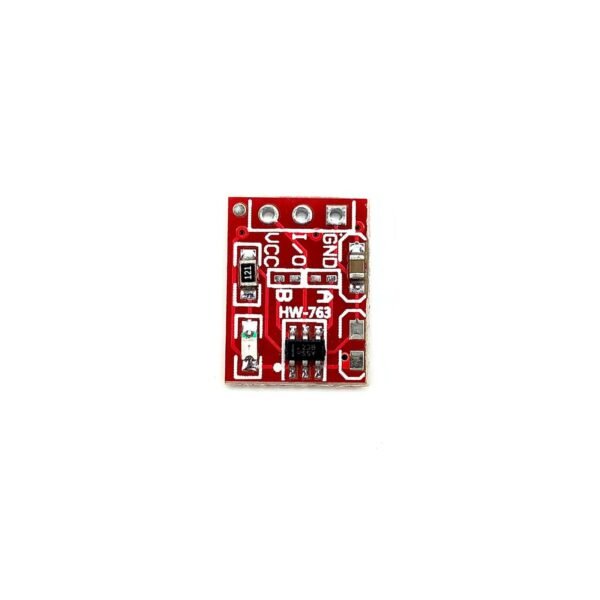

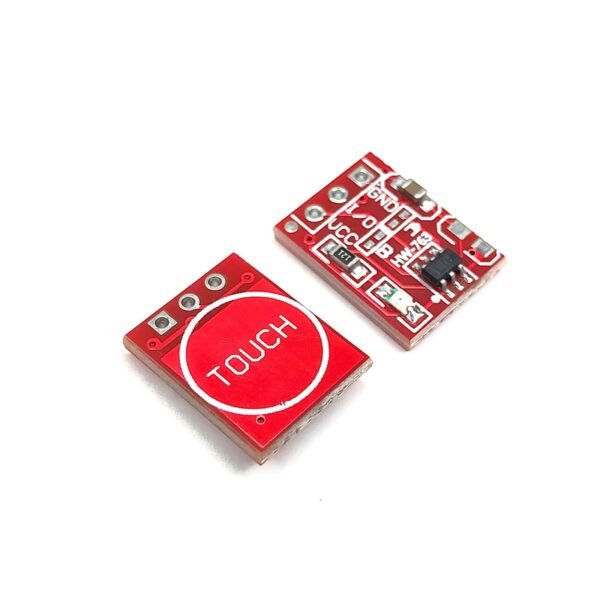

The TTP223 Touch Key Module is based on a touch-sensing IC (TTP223) capacitive touch switch module. A capacitive touch sensor module based on the dedicated TTP223 touch sensor IC. The module provides a single integrated touch sensing area of 11 x 10.5mm with a sensor range of ~5mm. An onboard LED will give a visual indication of when the sensor is triggered. When triggered the output of the module will switch from its idle low state to high (default operation). Solder jumpers allow for reconfiguring their mode of operation to be either active low or toggle output. TTP223 Capacitive Touch Sensor Module. The TTP223 is a touchpad detector IC replicating a single tactile button. The TTP223 is a touchpad detector IC replicating a single tactile button. This touch-detection IC is designed to replace traditional direct button keys with diverse pad sizes.

Specification:

• Operating Voltage: 2.5 ~ 5V DC
• Dimensions : 15mm x 11mm

Pin Description:

• • VCC : External 3.3V-5V
  • GND: External GND
  • DO   : Digital output interface, could be connected to MCU IO port
