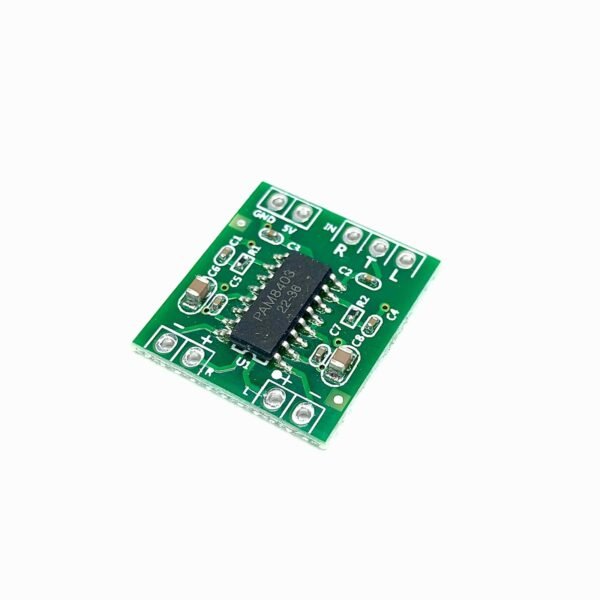

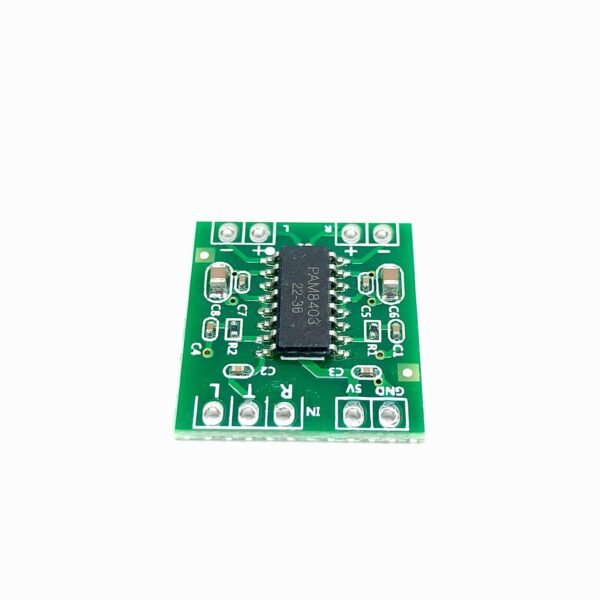

PAM8403 is an Amplifier Board that can be powered using simple 5V max and 3V min input and could drive two 3W + 3W stereo speakers. It is an excellent choice for those, who want a Class-D stereo audio amplifier in a small board space.

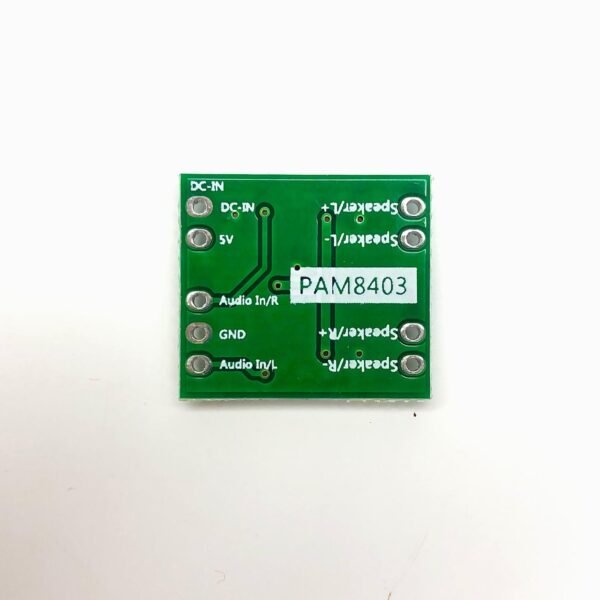

| Pin Name | Description |
| L | Audio Jack (TRS-Tip) Left Channel Input |
| Gnd | Audio Jack (TRS-Sleeve) Ground Channel Input |
| R | Audio Jack (TRS-Ring) Right Channel Input |
| ~5v-3V(+) | ~5v-3v DC Power VDD |
| ~5v-3V(-) | ~5v-3v DC Power GND |
| L(+) | Left Channel Positive Output |
| L(-) | Left Channel Negative Output |
| R(+) | Right Channel Positive Output |
| R(-) | Right Channel Negative Output |
Specification:
- Operating Voltage: Wide power supply ranges from 3V to ~5V or less DC
- Dual-channel stereo with high output power (3W+3W Output at 10% THD with a 4Ω Load @5v DC or Less)
- Max Gain 24 dB.
- Filterless architecture
- Low Quiescent Current and Low EMI
- Operating Temperature: -40 to +85°C
- Short Circuit Protection
- Thermal Shutdown
- Superior Low Noise
