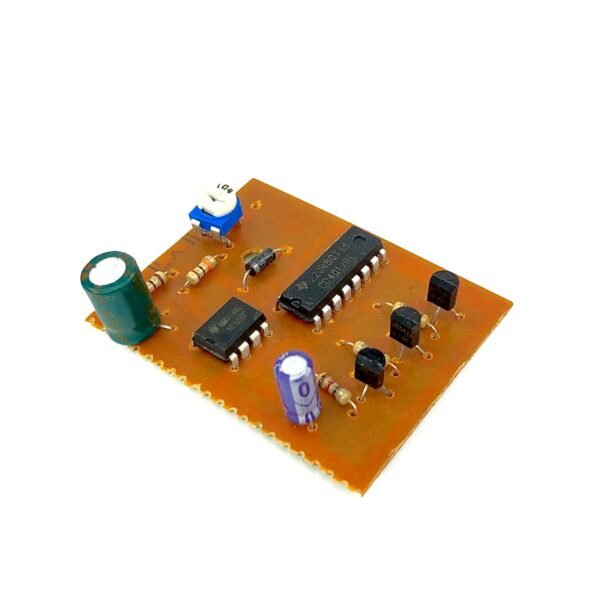

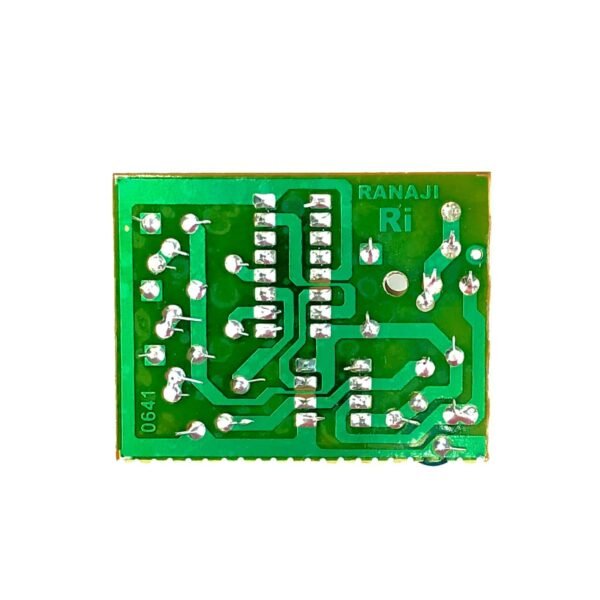

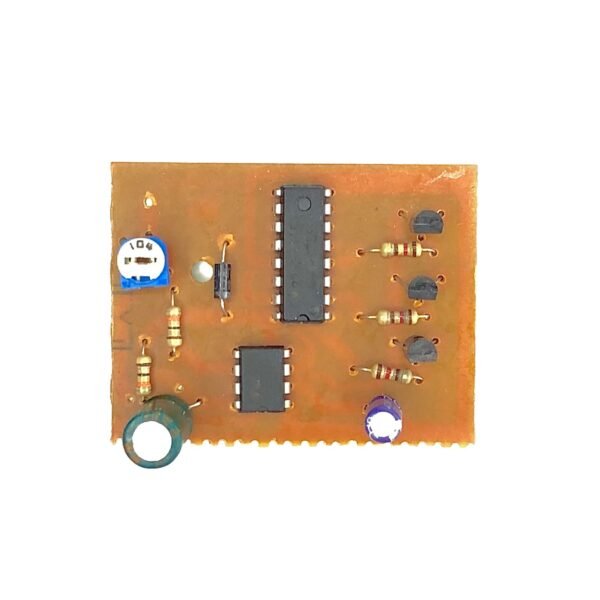

3 Channel LED Chaser with Adjustable Speed 4V-12V
₹69.00 Original price was: ₹69.00.₹38.00Current price is: ₹38.00.
3 channel LED chaser is based on LED flashing, If you want to build a 3 LED Chaser circuit we suggest this circuit first. It uses popular IC is a simple and affordable IC-4017 decade counter and IC-555. When we power the circuit, LEDs start glowing one by one for a defined time period.
Means first LED Q1 glows and then Q2 glows and Q1 turned OFF and then Q3 glows and Q2 turned OFF and so on. When we change the resistance of the variable resistor then the speed of LEDs increases.
Because the frequency of the 555 timer increases and this increases frequency signal is directly connected to the counter’s trigger pin. So that counter changes its state faster.
Weight | 0.007 kg |
---|---|
Dimensions | 5.2 × 4 × 0.9 cm |
