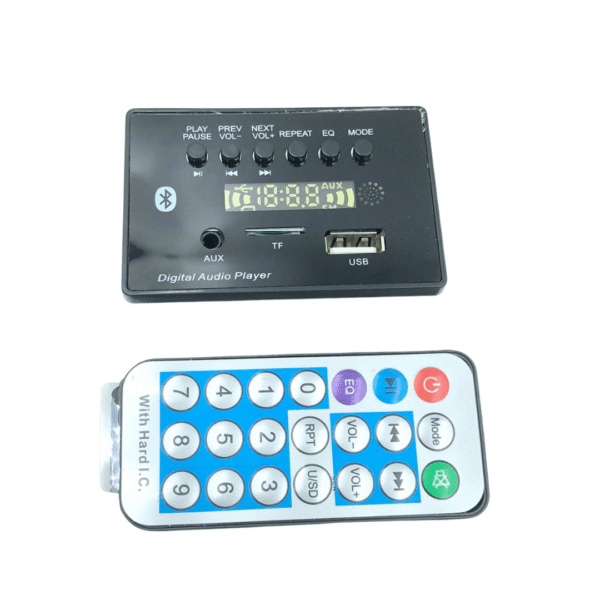

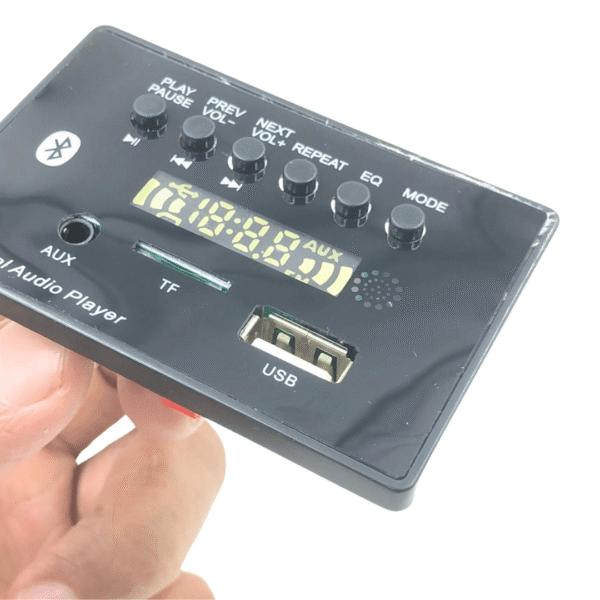

234-MAIN-V1.1-Bluetooth Audio Music Player Module with Frame & Display

Description

The Bluetooth Audio Music Player Module with Display is a compact and multifunctional DIY audio decoder board, ideal for building custom speaker systems, home audio setups, and various electronic sound projects. It supports multiple playback options such as Bluetooth streaming, FM radio, AUX input, and TF/SD card, allowing users to play music from different sources with ease.

This module is available in different configurations including MP3, Stereo, and Mono boards, making it suitable for both basic and advanced audio setups. Certain variants also come with IR remote control support and an inbuilt amplifier, offering added convenience and flexibility based on your project needs.

The built-in digital display provides clear information about playback modes, track details, and system status. With a Hi-Fi audio design and integrated TF decoder, the module ensures stable performance and clear sound output across different applications.

Perfect for DIY Bluetooth speakers, home audio systems, car audio modifications, and other electronic audio projects, this module offers a feature-rich and easy-to-use solution for modern audio requirements.

Note: PCB design, component placement, and layout may vary depending on the batch. Please check product images before purchasing.

Key Features:

• Supports multiple input sources: Bluetooth, FM, AUX, and TF/SD card
• Digital LED display for playback and mode information
  • Available in MP3, Mono, and Stereo variants
  • Optional IR remote control support in selected models
  • Built-in amplifier available in select versions
  • TF card decoding for direct music playback
  • Designed for clear and stable Hi-Fi audio output
  • Ideal for DIY audio and speaker projects

• ---

  Technical Specifications:

  Parameter	Details
  Product Type	Bluetooth Audio Player Module
  Variants	MP3, Stereo, Mono Boards
  Connectivity	Bluetooth, FM, AUX (optional), TF/SD Card
  Display	Digital LED

  Remote	IR Supported (optional)
  Amplifier	Available in selected variants
  Audio Decoder	TF Decoder
  Output	Mono / Stereo (depends on variant)
  Formats Supported	MP3 & other common formats
  Usage	DIY Audio & Speaker Systems

  ---

  Applications:

  • DIY Bluetooth Speaker Projects
  • Home Audio Systems
  • Car Audio Customization
  • Portable Music Systems
  • DIY Amplifier Builds
  • • Home Theater Projects
    • Audio Electronics Prototyping

    ---

    Precautions:

    • Purchase the correct variant (Mono / Stereo / MP3) as per requirement
    • Check if IR remote or amplifier is included in the selected model
    • Use proper voltage supply while connecting
    • Avoid short circuits during wiring
    • Refer to product images for exact layout and connector placement
