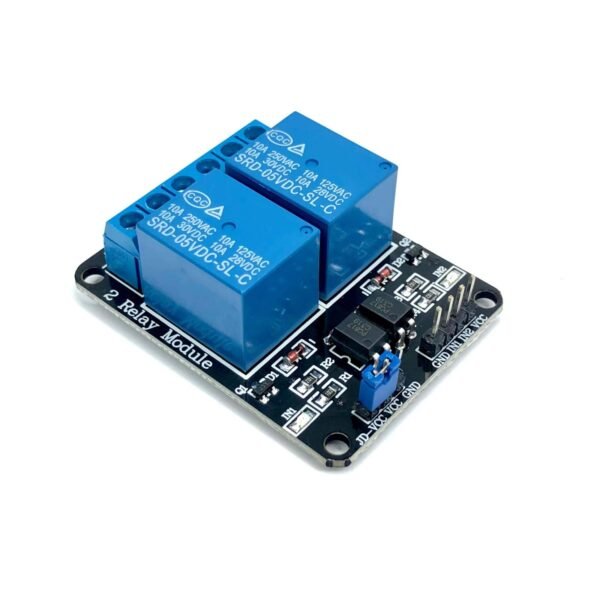

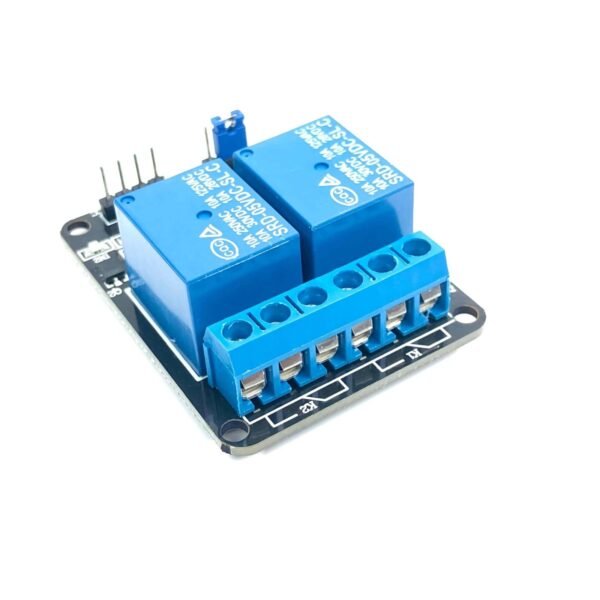

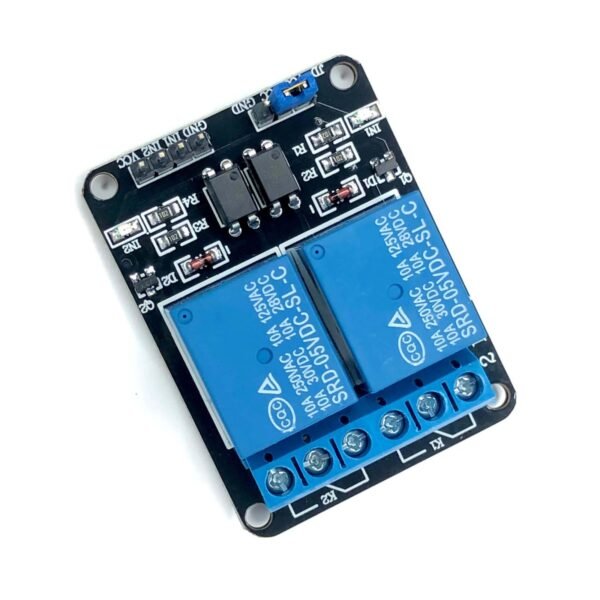

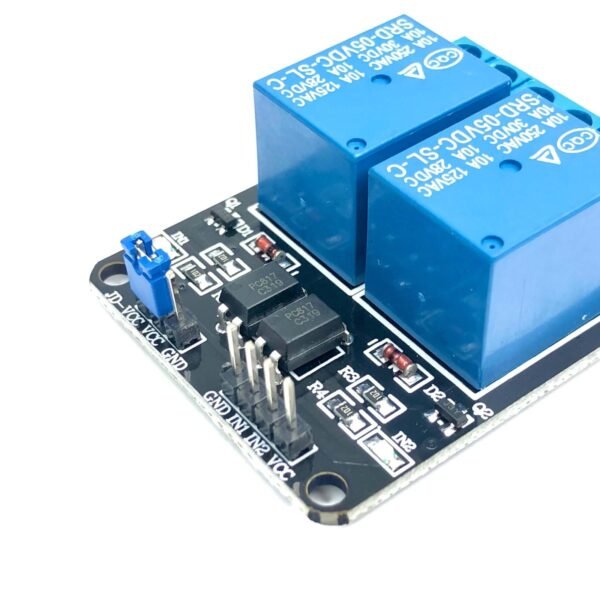

2 Channel 5V 10A Relay Module with optocoupler
Original price was: ₹99.00.₹75.00Current price is: ₹75.00.
Exclusive GST, Shipping calculated at checkout.
Description
Features:
- Board around with four fixed screw holes, hole diameter 3.1mm, easy to install and fixed
- Relay selection of high-quality loose relay, single-pole double-throw. A common end, a normally open end, a normally closed end
- Optocoupler isolation, good anti-interference
- Low level pull-in, high-level release. Pull the status indicator light, release the status indicator is off
- VCC for the system power, JD_VCC for the relay power. Plug in the jumper cap
Specifications-
| Relay Type | Low-Level Trigger |
| Logic Input (V) | 3.3 ~ 5 |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
Additional information
| Weight | 0.026 kg |
|---|---|
| Dimensions | 5 × 4 × 1.8 cm |
