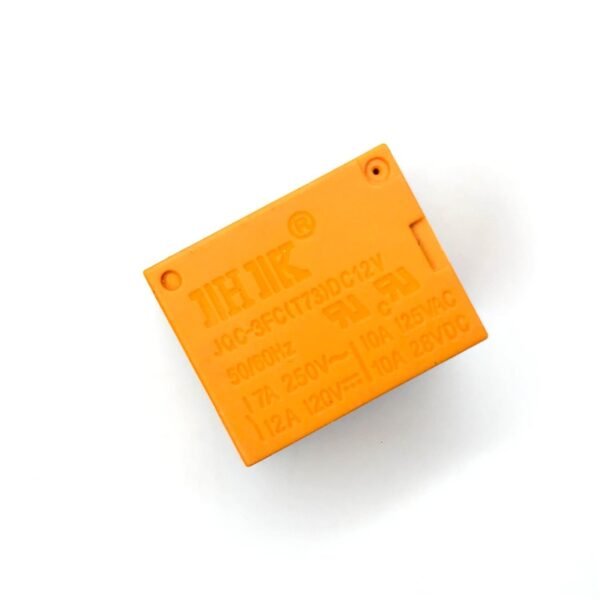

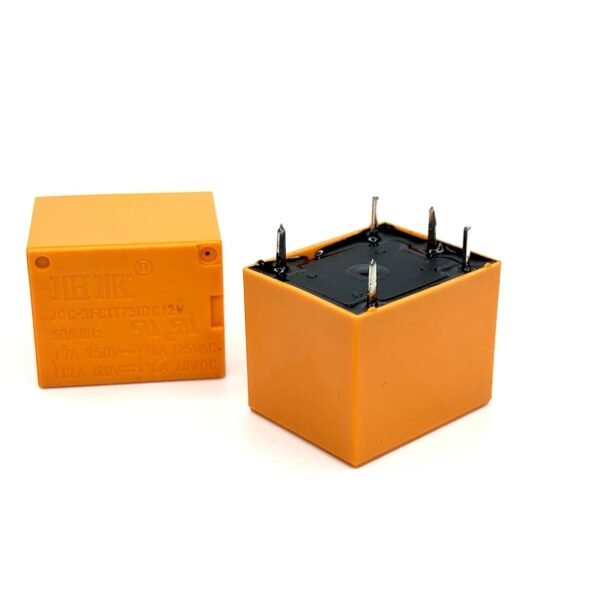

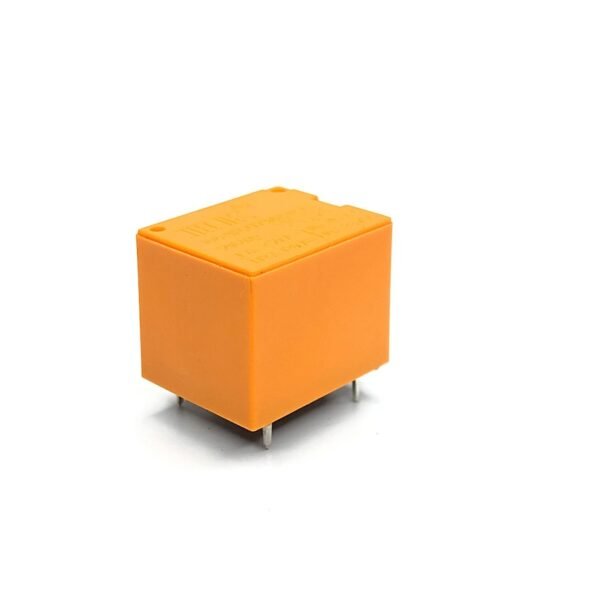

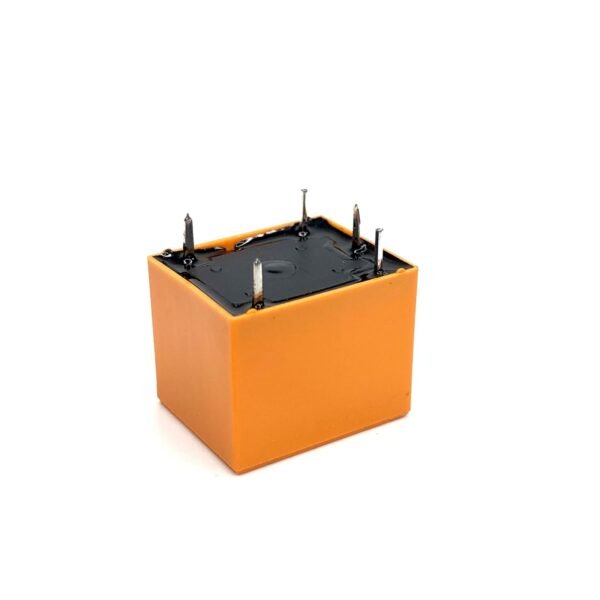

12V 10A PCB Mount Relay
Tax Incl, Shipping calculated at checkout.
Description
12V 10A PCB Mount Relay
This is the 12V relay most commonly used switching device in electronics. It is commonly used in Home Automation projects to switch AC loads, To Control (On/Off) Heavy loads at a pre-determined time/condition, Used in safety circuits to disconnect the load from supply in event of failure.
Specifications:
- Contact rating: 7A 250V AC
- Coil voltage: 12V DC
- Coil current: 30mA
- Coil resistance: 400Ω
- Coil power: 360mW
- Operate time: 10ms
- Release time: 5ms
-
- Insulation resistance: 100MΩ min.
- Dielectric strength: 1500V
- Operating temperature: -40°C to +70°C
Package Included:
1 x 12V 10A PCB Mount Relay
Additional Information
| Weight | 0.007 g |
|---|---|
| Dimensions | 1.8 × 1.4 × 1.4 in |
